Features
Content
PTX10K-LC1104
Details
PTX10K 6 x 100G/150G/200G DWDM line card with right to use all ports
Category
Stock

Additional information

Brand

Juniper

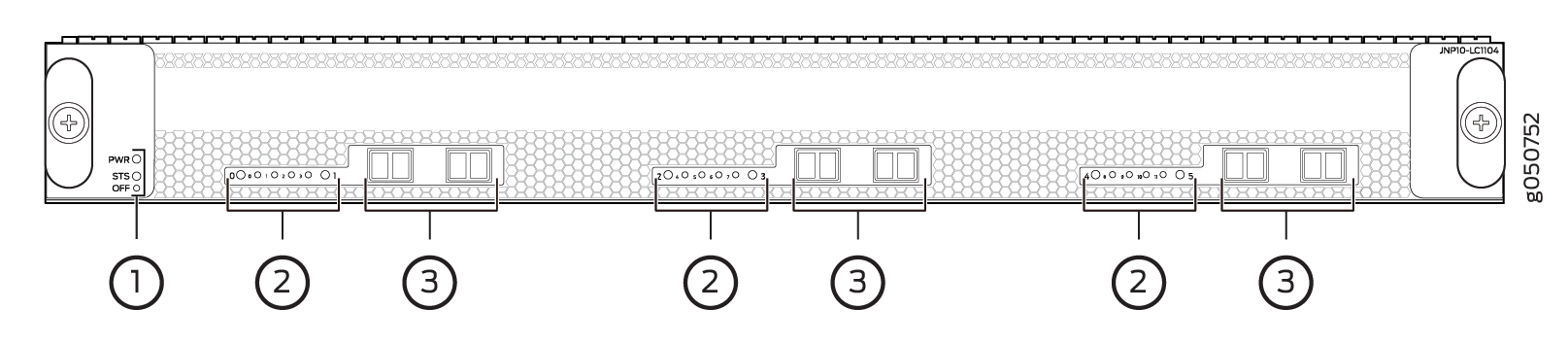

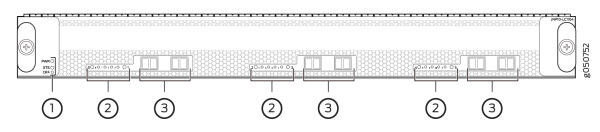

The PTX10K-LC1104 line card provides up to 1.2 Tbps of packet forwarding for cloud providers, service providers, and enterprises that need coherent dense wavelength-division multiplexing (DWDM) with MACsec security features. The 6-port line card, with built-in optics, supports flexible rate modulation at 100-Gbps, 150-Gbps, and 200-Gbps speeds. A maximum of four PTX10K-LC1104 coherent line cards are supported on the PTX10008 and PTX10016 Packet Transport Routers. See Figure 9. The PTX10K-LC1104 line card runs Juniper Networks Junos OS for PTX Series software on Juniper Networks JNP10K-LC1104 hardware. The PTX10K-LC1104 line card is supported on Junos OS Release 17.4R1-S1 and later on PTX10008 and Junos OS Release 18.3R1 on PTX10016 routers.
