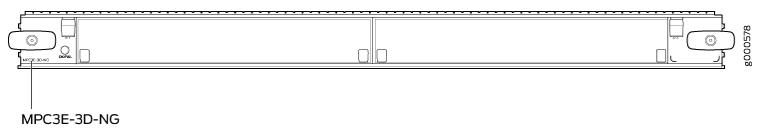

MPC3E-3D-NG
Details
Next-Gen MPC3E, Port Queue, MX
Category
Stock

Additional information

Brand

Juniper

130 Gbps capacity without hierarchical quality of service (HQoS) Requires high-capacity fan trays and high-capacity filter trays Weight: 15.96 lb (7.26 kg) Model number: MPC3E-3D-NG Name in the CLI: MPC3E NG PQ & Flex Q Add-on license provides limited additional flexible queuing. Hardware features Line-rate throughput of up to 130 Gbps Supports WAN-PHY mode at 9.95 Gbps and LAN-PHY mode at 10.31 Gbps Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes. Two slots for MICs Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services NOTE: The non-HQOS MPC3E NG and MPC2E NG MPCs support MIC-3D-8CHOC3-4CHOC12 and MIC-3D-4CHOC3-2CHOC12 only with a limited queuing license. NOTE: The MPC3E-3D-NG requires high-capacity power supplies, high-capacity fan trays, and enhanced switch control boards (SCBE, SCBE2, or SCBE3) on MX240, MX480, and MX960 routers
