Features
Content

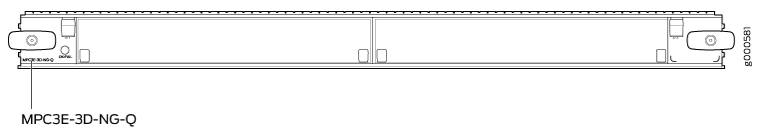

MPC3E-3D-NG-Q
Details
Next-Gen MPC3E, Rich Queue, MX
Category
Stock

Additional information

Brand

Juniper

130 Gbps capacity with hierarchical quality of service (HQoS) Requires high-capacity fan trays and high-capacity filter trays Weight: 15.96 lb (7.26 kg) Model number: MPC3E-3D-NG-Q Name in the CLI: MPC3E NG HQoS NOTE: MPC3E-3D-NG-Q is not compatible with SCB, you must use either SCBE-MX or SCBE2-MX for the switch fabric interface. Hardware features Line-rate throughput of up to 130 Gbps Supports up to 512,000 queues per slot Supports WAN-PHY mode at 9.95 Gbps and LAN-PHY mode at 10.31 Gbps Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes. Two slots for MICs Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services
