| Brand | Juniper |
|---|
Â
Â

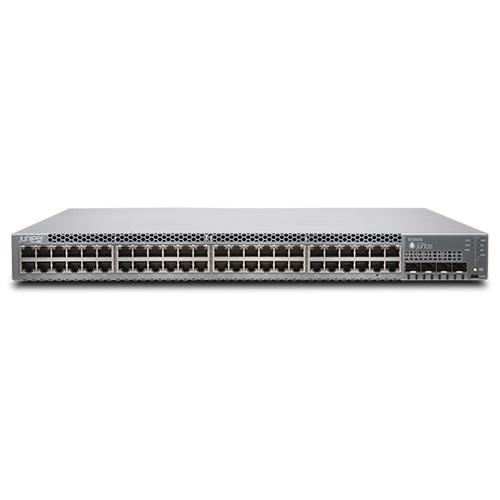

EX3400 Ethernet Switches are a cost-effective solution for highly demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management. This model offers 48 10/100/1000BASE-T ports, the EX3400 switch also supports IEEE 802.3af Power over Ethernet for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices. The EX3400Â supports Juniper's unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.
Â
| Ports | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
| Backplane speed | 160 Gbps |
| Data rate | 336 Gbps |
| Throughput | 250 Mpps (wire speed) |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Form factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
