| Features | |||
|---|---|---|---|
|
Content |
JL256A-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | HPE |
|---|

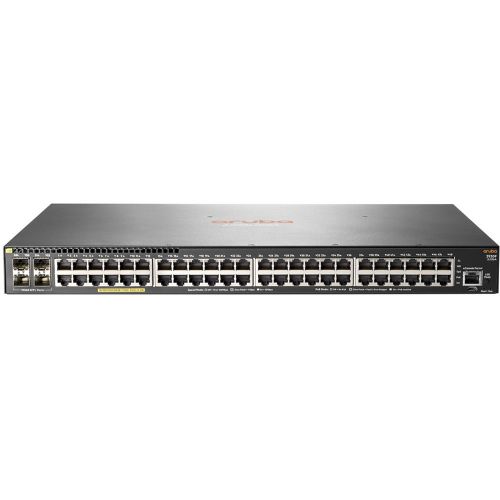

| Type | Aruba 2930F 48G PoE+ 4SFP+ Switch |
| I/O ports and slots | Â 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only
 4 SFP+ 1/10GbE ports; PHY-less |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC |
| Management | Aruba AirWave Network Management; IMC – Intelligent Management Center
Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| 1000 Mb Latency | < 3.8 s (64-byte packets) |
| 10 Gbps Latency | < 1.6 s (64-byte packets) |
| Throughput | up to 112.0 Mp/s |
| Switching capacity | 176 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Dimensions | 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U height |
| Weight | 4.46 kg ( 9.83 lb) |
| 80plus.org Certification | Silver |
| Description | N/A |
| Maximum heat dissipation | 1652.13 kJ/hr (1566 BTU/hr) |
| Voltage | 100 – 127 / 200 – 240 V ac, rated |
| Current | 5.1/2.5 A |
| Maximum power rating | 459 W |
| Idle power | 48.6 W |
| Frequency | 50/60 Hz |
| PoE power | 370 W PoE+ |
| Operating temperature | 0C to 45C (32F to 113F)
up to 5000 Feet – 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40C ( 104F)
noncondensing |
| Nonoperating/Storage temperature | -40C to 70C (-40F to 158F)
up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65C ( 149F)
noncondensing |
| Acoustic | Power: 55.7 dB, Pressure: 41.7 dB |
| Airflow direction | Side-to-side |
| Safety | UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| Emissions | EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
| Immunity | Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic field IEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3Â Â Â Â Â Â Â |
