| Features | |||
|---|---|---|---|
|
Content |
J9773A-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | HPE |
|---|
Â
Â
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.
Â

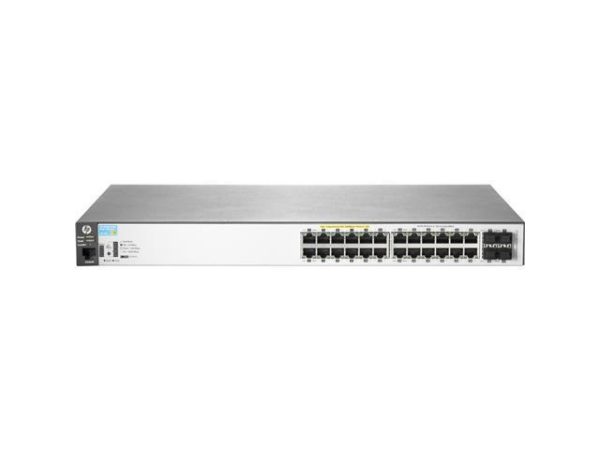

| Type | Aruba 2530-24G-PoE+ Switch |
| Ports | Â 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
| PoE power | 195 W |
| Throughput | up to 41.6 million pps (64-byte packets) |
| Switching capacity | 56 Gb/s |
| Dimensions (W x D x H) | 44.3 x 33.02 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
| Weight | 3.95 kg (8.7 lb) |
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC – Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.        |
| 1000 Mb latency | < 2.3 s (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 s (LIFO 64-byte packets) |
| MAC address table size | 16000 entries |
| Maximum heat dissipation | 135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr) |
| Voltage | 100 – 127 / 200 – 240 V ac |
| Current | 3.2/1.6 A |
| Idle power1 | 25.2 W |
| Maximum power rating2 | 247 W |
| PoE power | 195 W |
| Frequency | 50/60 Hz |
| Operating temperature | 0 to 45C (32 to 113F) |
| Operating relative humidity | 15% to 95% @ 40C (104F), noncondensing |
| Non-operating/storage temperature | -40 to 70C (-40 to 158F) |
| Non-operating/storage relative humidity | 15% to 90% @ 65C (149F), noncondensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | Power: 39.6 dB, Pressure: 43.9 dB |
| Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
