JW149A
Details
SFP-EX 1000BASE-EX LC SFP XCVR
Category
Stock

Additional information

Brand

HP/Aruba

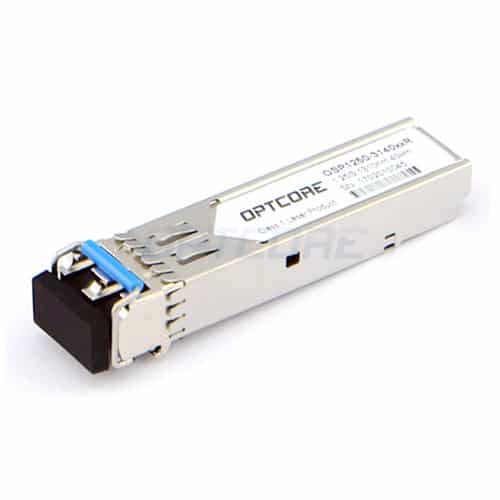

Optcore’s OSP1250-3140DCR is a high performance and cost effective small form factor pluggable (SFP) transceiver module for 1000BASE-EX Gigabit Ethernet per IEEE802.3z and 1G Fiber Channel application. It supports dual data-rate of 1.25Gbps/1.06Gbps and 40km transmission distance with 9/125um single mode fiber. This 1G SFP EX transceiver module fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. The transmitter section uses a 1310nm DFB laser that is a class 1 laser product compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed PIN photodiode integrated with a trans-impedance preamplifier (TIA). Additionally, the OSP1250-3140DCR family SFP module also provides an optional digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.
