HP/Aruba JL293A Optical

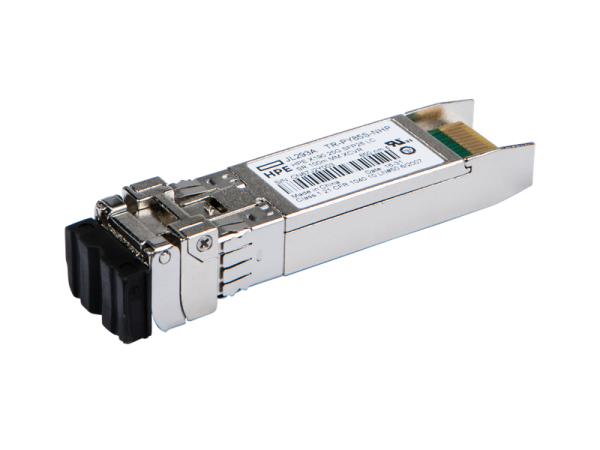

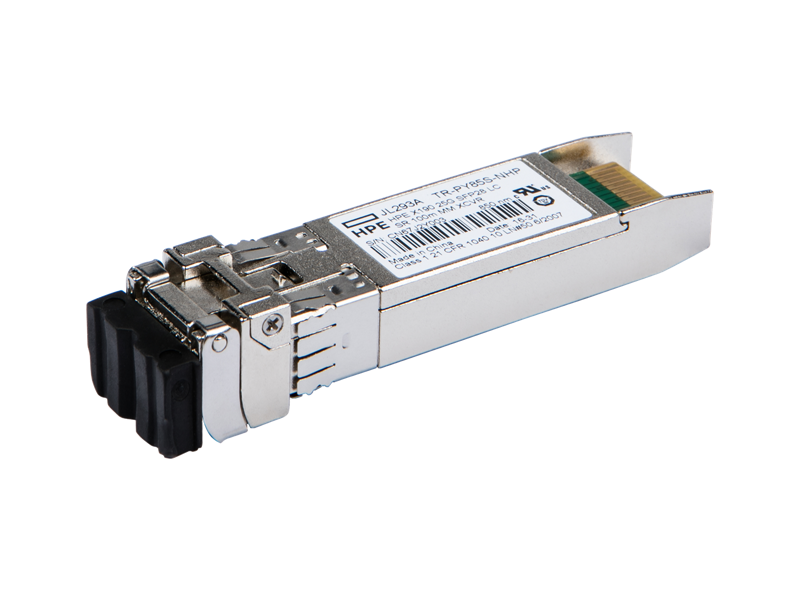

HP compatible JL293A is SFP28 (Small Form factor Pluggable 28) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 2.6 dB, with in most cases is enough to reach about 100m distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. and 850 nm. PIN photodiode receiver. JL293A support DDM/DOM optical diagnostics, that provide diagnostic information about the present operating conditions. HP compatible JL293A SFP28 operates in Standard 0°-70°C temperature range and has Double LC interface. HP compatible JL293A support 8.5-28.1 Gbps data rate and such applications as 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps). HP JL293A compatible SFP28 Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Access and Metro Networks, Data Center Core Networks and Enterprise Campus Networks. To ensure compatibility we have tested HP compatible JL293A Transceiver in latest platforms of HP networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with HP platforms. Transceiver is also fully compliant to SFP+ MSA, SFF-8402, SFF-8472, SFF-8431, SFF-8432, IEEE 802.3by, CE, RoHS-6, Class 1 FDA and IEC60825-1 Laser Safety standard. Transceiver is CE/RoHS certified and is compliant with product safety standards.
