| Features | |||
|---|---|---|---|
|
Content |
WS-C3850-24S-S-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|
Â
Â

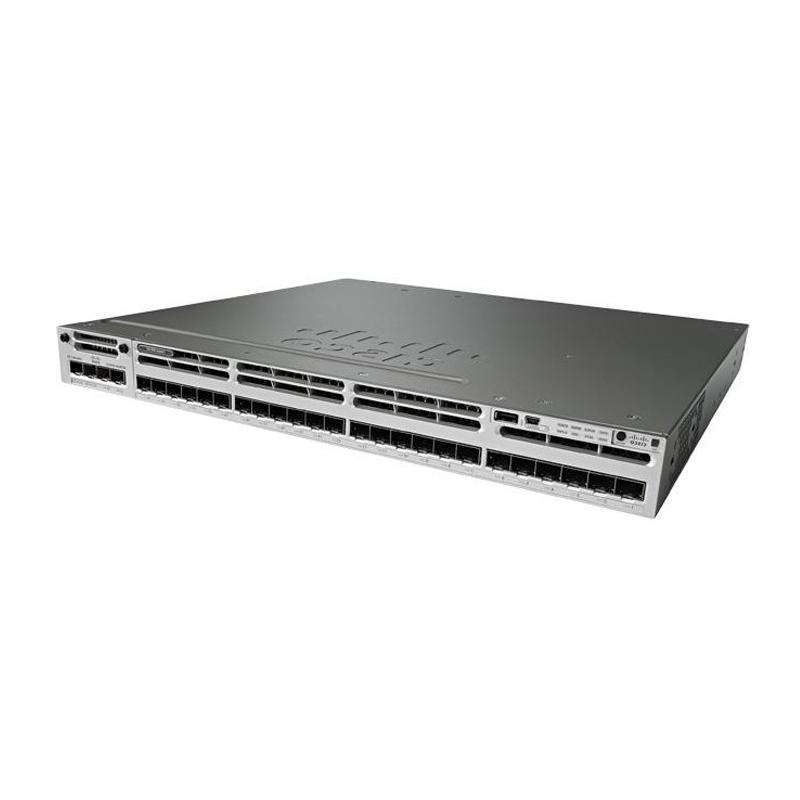

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
Â
| Ports | 24 x SFP ports |
| Network SFP Uplink Module Selection | C3850-NM-4-1G C3850-NM-2-10G |
| Network management Interface | - Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling - Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 92Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 68.4Mpps |
| RAM | 4 G |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 44.5 cm x 45 cm x 4.45 cm |
| Network management Interface |  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling  Management console port: RJ-45-to-DB9 cable for PC connections |
| FNF entries | 48,000 flows |
| Maximum VLANs IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | Â C3850-NM-4-1G: 4 x 1G uplinks network module C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
| Stacking cable | STACK-T1-50CM StackWise stacking cable with a 0.5 m length STACK-T1-1M StackWise stacking cable with a 1.0 m length STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | CAB-SPWR-30CM stack power cable with a 30CM length CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-350WAC |
| Power Device | Power supply – redundant – plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 109.75 (Max) |
| Width | 17.5 Inches (44.5 Cm) |
| Depth | 17.7 Inches (45.0 Cm) |
| Height | 1.75 Inches (4.45 Cm) |
| Weight | 15.48 Pounds (7.02Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 315,840 |
| Compliant Standards |  IEEE 802.1D Spanning Tree Protoco  IEEE 802.1p CoS Prioritization  IEEE 802.1Q VLAN  IEEE 802.1s  IEEE 802.1w  IEEE 802.1X  IEEE 802.1X-Rev IEEE 802.11  IEEE 802.1ab (LLDP)  IEEE 802.3ad  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports  IEEE 802.3 10BASE-T |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software license | C3850-24-S-E: IP Base to IP Services RTU paper license L-C3850-24-S-E: IP Base to IP Services RTU electronic license |
| Access Point Licenses | L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
| features | RPS Support Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP and PAgP
 PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast Dynamic Trunking Protocol (DTP) port CoS Trust and Override  Trusted Boundary ACL Classification ingress Policing Auto QoS Per VLAN policies 802.1p queues Scheduling  Priority Queuing Configure CoS Priority Queues Configure CoS Priority Queues Configure Queue Weights Configure Buffers and Thresholds Class & Policy Maps Modify CoS and DSCP Mapping Weighted Tail Drop IGMPv1,v2,v3 and MLDv1, v2  DHCP server DSCP transparency HSRP, VRRP RIPv1, v2 EIGRP stub, PIM stub, OSPF stub IPV6 management |
| Advanced Network security |  Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard The Unicast Reverse Path Forwarding (uRPF)  Bidirectional data support on a SPAN User authentication  Private VLAN Router and VLAN ACLs  complete identity and security  Multidomain authentication MAC address notification  IGMP filtering Cisco security VLAN ACL  Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)  Port-based ACLs TrustSec SXP IEEE 802.1ae  TACACS+ and RADIUS authentication Cisco standard and extended IP security router ACLs  Bridge protocol data unit (BPDU) Guard  Spanning Tree Root Guard (STRG) Wireless end-to-end security |
| Operating temperature up to 5000 ft (1500 m) | 23F to 113F ( -5C to +45C) |
| Operating temperature up to 10,000 ft (3000 m) | 23F to 104F (-5C to +40C) |
| Short-term exception at sealevel with single fan failure | 23F to 113F (-5C to +45C) |
| Short-term exception up to 5000 feet (1500 m) | 23F to 122F (-5C to 50C) |
| Short-term exception up to 10,000 feet (3000 m) | 23F to 113F (-5C to 45C) |
| Operating temperature up to 6000 ft (1800 m) | 23F to 113F (-5C to +45C) |
| Operating temperature up to 10,000 ft (3000 m) | 23F to 104F ( -5C to +40C) |
| Operating temperature up to 13,000 ft (4000m) | 23F to 95F ( -5C to 35C) |
| Short-term exception up to 6,000 feet (1800 m) | 23F to 131F ( -5C to +55C) |
| Short-term exception up to 10,000 feet (3000 m) | 23F to 122F (-5C to +50C) |
| Short-term exception up to 13,000 feet (4000 m) | 23F to 113F (-5C to +45C) |
| Short-term exception at sealevel with single fan failure | 23F to 113F (-5C to +45) |
| Storage environment | Â -40F to 160F (-40C to 70C) |
| Operating altitude | Up to 13,000 feet (Up to 4000m) |
| Storage altitude | Up to 15,000 feet (Up to 4573m) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
