WS-C3560CX-8TC-S-NEW
Details
  • 8x 10/100/1000 Gigabit Ethernet Ports
  • Layer 3
  • Standalone
  • 2x 1G SFP / 2x 1G Copper Uplinks
  • IP Base
  • Managed
Category
Stock

Additional information

Brand

Cisco

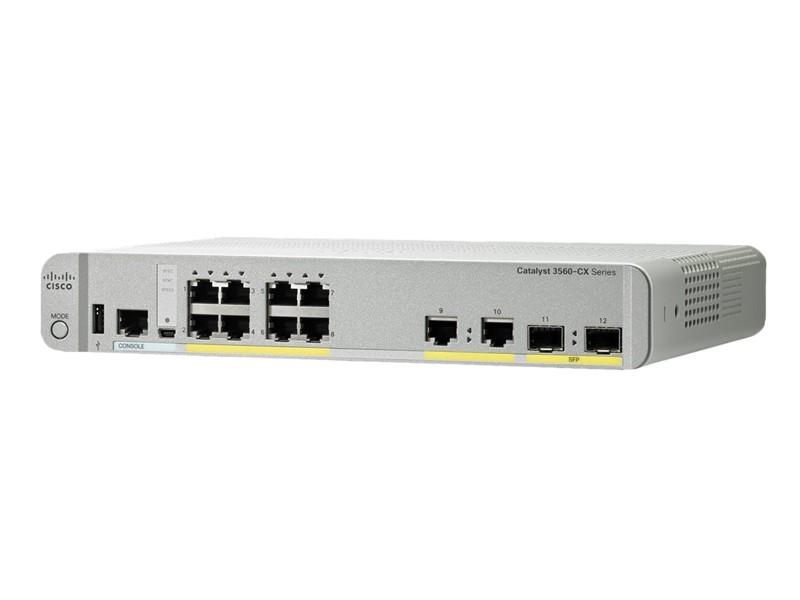

Cisco WS-C3560CX-8TC-S Switch Overview



The Cisco Catalyst 3560-C series compact switch is a small form-factor Gigabit Ethernet and Fast Ethernet switch designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, branch office, classroom, cruise ship, and other wiring-constrained environments.



Feature Set IP Base
Uplink Interfaces 2 x 1G copper plus 2 x 1G SFP
Ports 8 x 10/100/1000 Gigabit Ethernet
Forwarding Bandwidth 16 Gbps
Switching Bandwidth (full-duplex capacity) 32 Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 4.44 x 26.9 x 21.3 cm
Powering Option Internal power supply
Available PoE Power (W) 0W
Can Switch Be Powered with Uplinks? No
Max VLANs 1023
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet  17.9 mpps
Dimensions
(H x W x D)
1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3cm)
Weight 3.8 lb (1.72 Kg)
Operating* temperature up to 5000 ft (1524 m) -5C to +45C (+23F to +113F)
Operating* temperature up to 10,000 ft (3048 m) -5C to +45C (+23F to +113F)
Storage temperature up to 15,000 ft (4572 m) -25C to +70C (-13F to +158F)
Operating altitude Up to 3048 m (Up to 10,000 ft)
Storage altitude Up to 4000 m (Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
MTBF 756,260
Management BRIDGE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONFIG-MAN-MIB
CISCO-DHCP-SNOOPING-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-LAG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-POE-EXTENSIONS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-PRODUCTS-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-SMI-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TC-MIB
CISCO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE
RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
Standards   IEEE 802.1D Spanning Tree Protocol

  IEEE 802.1p CoS Prioritization

  IEEE 802.1Q VLAN

  IEEE 802.1s

  IEEE 802.1w

  IEEE 802.1x

  IEEE 802.1AB (LLDP)

  IEEE 802.3ad

  IEEE 802.3af

  IEEE 802.3ah
(100BASE-X single/multimode fiber only)

  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

  IEEE 802.3 10BASE-T specification

  IEEE 802.3u 100BASE-TX specification

  IEEE 802.3ab 1000BASE-T specification

  IEEE 802.3z 1000BASE-X specification

  100BASE-BX (SFP)

  100BASE-FX (SFP)

  100BASE-LX (SFP)

  1000BASE-BX (SFP)

  1000BASE-SX (SFP)

  1000BASE-LX/LH (SFP)

  1000BASE-ZX (SFP)

  1000BASE-CWDM SFP 1470 nm

  1000BASE-CWDM SFP 1490 nm

  1000BASE-CWDM SFP 1510 nm

  1000BASE-CWDM SFP 1530 nm

  1000BASE-CWDM SFP 1550 nm

  1000BASE-CWDM SFP 1570 nm

  1000BASE-CWDM SFP 1590 nm

  1000BASE-CWDM SFP 1610 nm

  RMON I and II standards

  SNMPv1, SNMPv2c, and SNMPv3

RFC compliance   RFC 768: UDP

  RFC 783: TFTP

  RFC 791: IP

  RFC 792: ICMP

  RFC 793: TCP

  RFC 826: ARP

  RFC 854: Telnet

  RFC 951: Bootstrap Protocol

  RFC 1542: BOOTP Extensions

  RFC 959: FTP

  RFC 1058: RIP Routing

  RFC 1112: IP Multicast and IGMP

  RFC 1157: SNMPv1

  RFC 1166: IP Addresses

  RFC 1253: OSPF Routing

  RFC 1256: ICMP Router Discovery

  RFC 1305: NTP

  RFC 1492: TACACS+

  RFC 1493: Bridge MIB

  RFC 1542: Bootstrap Protocol

  RFC 1583: OSPFv2

  RFC 1643: Ethernet Interface MIB

  RFC 1723: RIPv2 Routing

  RFC 1757: RMON

  RFC 1812: IP Routing

  RFC 1901: SNMPv2C

  RFC 1902-1907: SNMPv2

  RFC 1981: MTU Path Discovery IPv6

  FRC 2068: HTTP

  RFC 2080: RIP for IPv6

  RFC 2131: DHCP

  RFC 2138: RADIUS

  RFC 2233: IF MIB

  RFC 2236: IP Multicast

  RFC 2328: OSPFv2

  RFC 2273-2275: SNMPv3

  RFC 2373: IPv6 Aggregatable Addrs

  RFC 2453: RIPv2 Routing

  RFC 2460: IPv6 protocol

  RFC 2461: IPv6 Neighbor Discovery

  RFC 2462: IPv6 Autoconfiguration

  RFC 2463: ICMP IPv6

  RFC 2474: DiffServ Precedence

  RFC 2597: Assured Forwarding

  RFC 2598: Expedited Forwarding

  RFC 2571: SNMP Management

  RFC 2740: OSPF for IPv6

  RFC 3046: DHCP Relay Agent Information Option

  RFC 3101, 1587: NSSAs

  RFC 3376: IGMPv3

  RFC 3580: 802.1x RADIUS

Safety standards   UL 60950-1

  CAN/CSA 22.2 No. 60950-1

  EN 60950-1

  IEC 60950-1

  CE Marking

  GB 4943

  IEC 60825


Electromagnetic emissions certifications   FCC Part 15, CFR 47, Class A, North America

  EN/IEC 61000-4-5

  EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union

  AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand

  VCCI Class A, V-3/2007.04, Japan

  KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea

  ANATEL, Brazil

  CCC, China

  GOST, Russia

Environmental Reduction of Hazardous Substances (ROHS) 6
Telco Common Language Equipment Identifier (CLEI) code
