| Brand | Cisco |
|---|

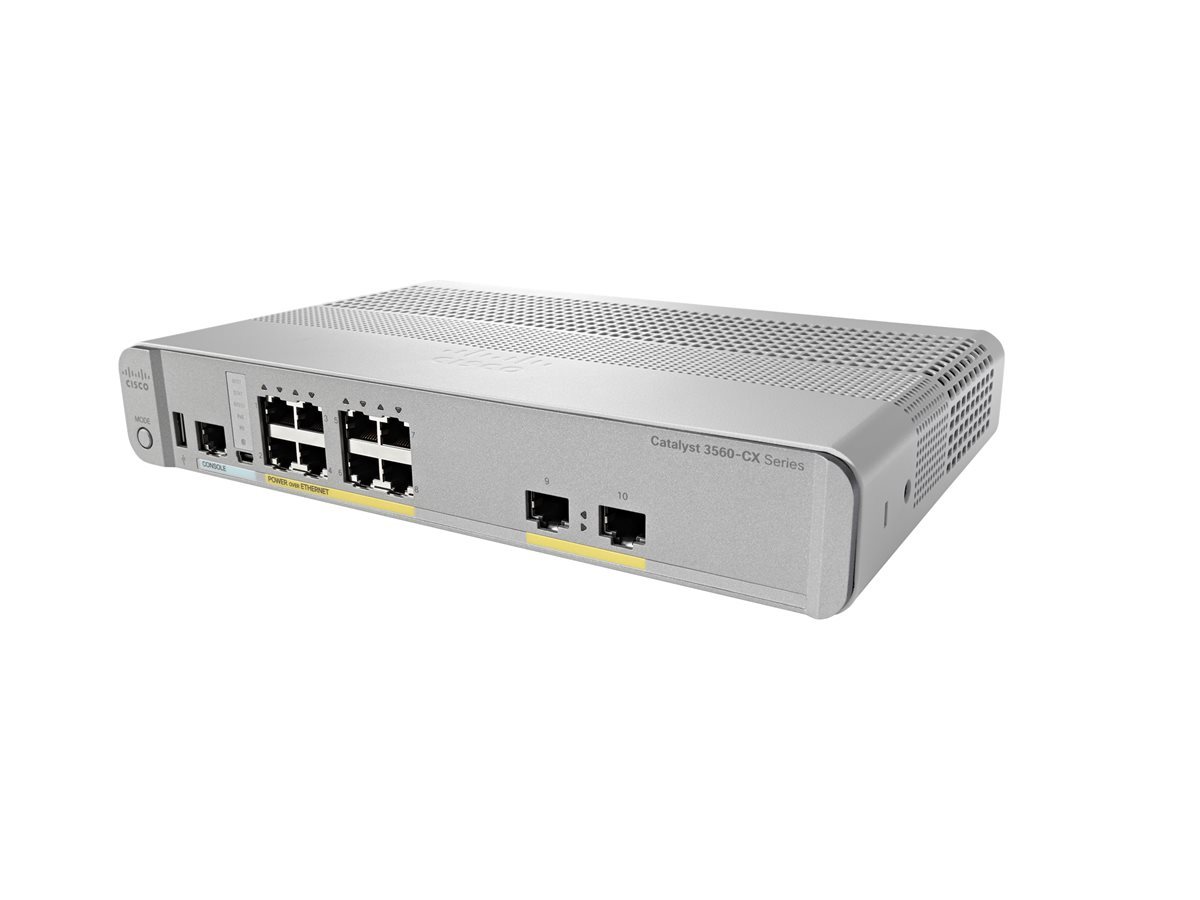

Cisco WS-C3560CX-8PT-S Switch helps optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium.Â
Cisco WS-C3560CX-8PT-S Switch is designed to enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints. It offers flexible mounting options and opens up a variety of network design and connectivity options with their quiet, fan-less design and compact footprint. Cisco WS-C3560CX-8PT-S Switch is built to use in offices, classrooms, hotels, retail stores, and other enterprise and branch locations.
| Type | Virtual interfaces (VLANs) |
| Value | 1023 |
| Width | 10.6 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 3.48 lbs |
| Min Operating Temperature | 23 F |
| Max Operating Temperature | 113 F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -13 F |
| Max Storage Temperature | 158 F |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Installed Size | 128 MB |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3560CX-8PT-S |
| Brand | Cisco |
| Qty | 8 |
| Comments | PoE+ |
| Type | USB |
| Connector Type | Type A |
| Rack Mounting Kit | Optional |
| Compliant Standards | 80 PLUS Silver, ANATEL, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22, CISPR 24, EN 60950-1, EN55022, EN55024, GB 4943, GOST, IEC 60825, IEC 60950-1, KCC Class A, KN22, KN24, RoHS, UL 60950-1, VCCI V-3/2007.04 Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 737,740 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Type | Forwarding performance (64-byte packet size) |
| Value | 14.9 Mpps |
| Qty | 10 |
| Type | 10/100/1000 (PoE+) |
| Power Consumption Operational | 24.3 Watt |
| Installed Size | 512 MB |
| Type | Cisco IOS IP Base |
| Type | Switch |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Link/activity, PoE, Port transmission speed, Status, System |
| Ports Qty | 8 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, BOOTP support, Class of Service (CoS), DHCP snooping, DHCP support, DiffServ support, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Fanless, Full duplex capability, IPv6 support, MAC Address Notification, Multicast VLAN Registration (MVR), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Weighted Tail Drop (WTD) |
| Routing Protocol | RIP-1, RIP-2, Static IP routing |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | PoE+ |
| Manageable | Yes |
| Form Factor | Desktop, DIN rail mountable, Rack-mountable, Wall-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | 10 Gigabit Ethernet |
| PoE Budget | 146 W |
