WS-C2960X-48FPS-L-NEW
Details
  • 24 x 10/100/1000 Ports - Gigabit Ethernet Switch
  • 2 x 1G SFP Uplinks
  • LAN Base
  • Layer 2
  • Managed
Category
Stock

Additional information

Brand

Cisco

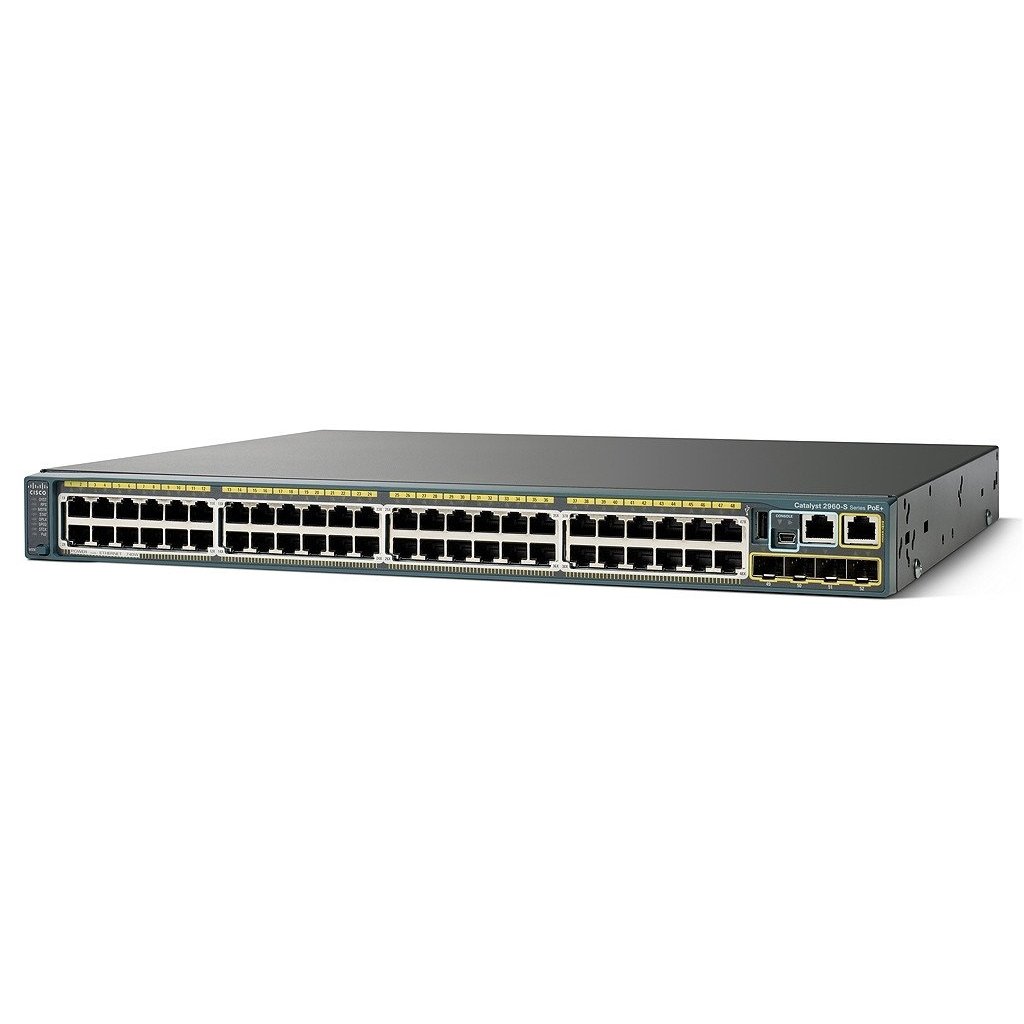

Enterprise-Class Cisco WS-C2960X-48FPS-L Catalyst Switch

Cisco WS-C2960X-48FPS-L Catalyst Switch is a Gigabit SFP managed switch. It's ideal for using desktop, rack-mountable, PoE+ use. These switches have fixed-configuration and can provide enterprise-class access for campus and branch applications.

Key Benefits of Cisco WS-C2960X-48FPS-L Catalyst Switch

Cisco WS-C2960X-48FPS-L Catalyst Switch is designed for operational simplicity to cut down costs of ownership. These switches can enable scalable, secure and energy-efficient business operations.



Enclosure Type Rack-mountable - 1U
Feature Set LAN Base
Uplink Interfaces 4 x 1G SFP
Ports 48 x 10/100/1000 Ethernet Gigabit ports
Available PoE Power 740W
Maximum stacking number 8
Stack bandwidth 80G
Forwarding Performance 107.1Mpps
Switching Bandwidth 216Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 44.5 cm x 36.8 cm x 4.5 cm
Package Weight 10.65 Kg



Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power 740W
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number 8
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 256 MB
Status Indicators Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable Optional
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.89KVA
Width 17.5 Inches (44.5 cm)
Depth 14.5 Inches (36.8 cm)
Height 1.75 Inches (4.5 cm)
Weight 12.9 lb (5.8 Kg)
Package Weight 23.48 lb (10.65 Kg)
Rack Mounting Kit optional
MTBF in hours 232,610
Compliant Standards  IEEE 802.1D Spanning Tree Protocol
 IEEE 802.1p CoS Prioritization
 IEEE 802.1Q VLAN
 IEEE 802.1s
 IEEE 802.1w
 IEEE 802.1X
 IEEE 802.1ab (LLDP)
 IEEE 802.3ad
 IEEE 802.3af and IEEE 802.3at
 IEEE 802.3ah (100BASE-X single/multimode fiber only)
 IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

 IEEE 802.3 10BASE-T
 IEEE 802.3u 100BASE-TX
 IEEE 802.3ab 1000BASE-T
 IEEE 802.3z 1000BASE-X
 RMON I and II standards
 SNMP v1, v2c, and v3
 IEEE 802.3az
 IEEE 802.1ax

System software IOS LAN BASE
License NERGY-MGT-100-K9, EW-DO-100-DE
Features Jumbo Frames

VLANS

Voice Vlan

VTPv2

CDPv2

LLDP

802.3ad LACP

PVST/PVST+

802.1W/802.1S

Port Fast/Uplink Fast

port CoS Trust and Override

Scheduling

Priority Queuing

Configure CoS Priority Queues

Weighted Tail Drop

DSCP transparency

Network security SSH, SSL and SCP

RADIUS and TACACS+

SNMPv3 crypto

802.1x

802.1x Accounting / MIB

802.1x w/ port security

802.1x w/Voice VLAN

802.1x Guest VLAN

802.1x VLAN assignment

802.1x MAC-Auth Bypass

BPDU/Root Guard

Port Security

Private VALN Edge

Storm Control

Block unknown unicast and multicast

IGMP Snooping

IGMP Filter/Throttle

Management and Troubleshooting Auto-MDOX

TDR

UDLD

IP SLA Responder

layer 2 / IP Traceroute

SPAN

RSPAN

Express Setup

Device Manager

Cisco Network Assistant

Smartports + Advisor

Troubleshooting Advisor

Drag-and-drop Cisco IOS Upgrade

IP Address DHCP

Autoinstall with saved configuration

Configuration Replace

DHCP Auto Image Upgrade

DHCP Port Based Allocation

Error Disable MIB

Operating temperature up to 5000 ft (1500 m) 23F to 113F

(-5C to 45C)

Operating temperature up to 10,000 ft (3000 m) 23F to 104F

(-5C to 40C)

Short-term exception at sea level* 23F to 131F

(-5C to 55C)

Short-term exception up to 5000 feet (1500 m)* 23F to 122F

(-5C to 50C)

Short-term exception up to 10,000 feet (3000 m)* 23F to 113F

(-5C to 45C)

Short-term exception up to 13,000 feet (4000 m)* 23 to 104F

(-5C to 40C)

Storage temperature up to 15,000 feet (4573 m) -13 to 158F

(-25 to 70C)

Operating altitude Up to 10,000 Feet

(Up to 3000 Meters)

Storage altitude Up to 13,000

(Up to 4000 Meters)

Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
