| Features | |||
|---|---|---|---|
|
Content |
WS-C2960X-24TD-L-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|

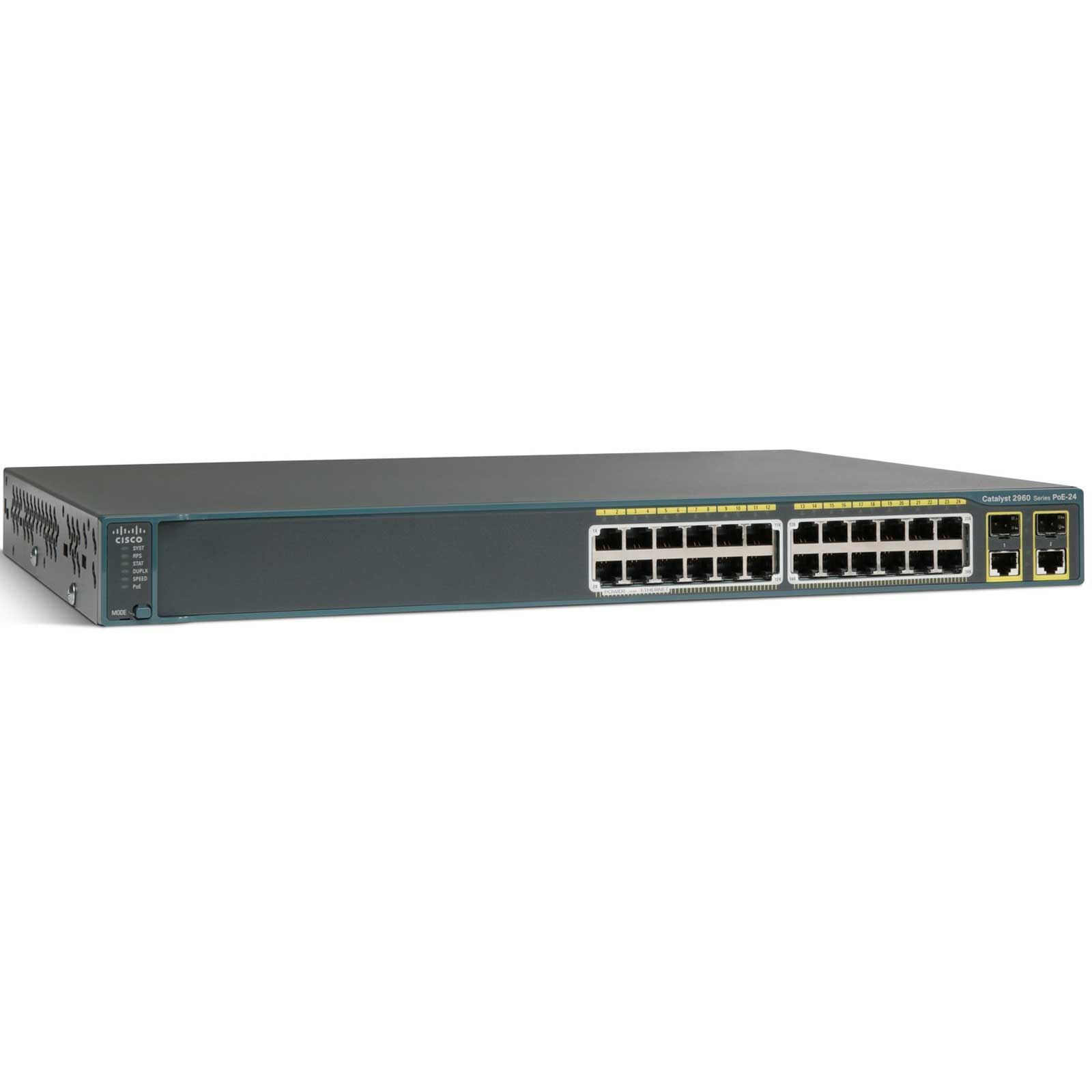

Cisco WS-C2960X-24TD-L Switch features 24 Ethernet 10/100/1000 Gigabit ports and two (2) 1G SFP uplink Standalone mode. Cisco WS-C2960X-24TD-L Switch enables application-aware intelligence, smart operations Layer 3 routing and delivers world-class energy-efficiency with up to 80% energy savings.
Cisco WS-C2960X-24TD-L Switch is scalable and resilient and allows stacking of up to 24 switches. It enables ease of operation and management with a single configuration across the member of the stack. Users will get control plane redundancy across FlexStack-Plus switches and minimizes traffic disruption if any stack member fails.
Â
| Enclosure Type        | Rack-mountable - 1U |
| Feature Set | LAN Base |
| Uplink Interfaces | 2 x 10G SFP+ |
| Ports | 24 x 10/100/1000 Ethernet Gigabit ports |
| Available PoE Power | None |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Forwarding Performance | 95.2Mpps |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions | 44.5cm x 27.9cm x 4.45cm |
| Package Weight | 9.19 Kg |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex and link speed |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.034KVA |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11.0 Inches (27.9 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 8.9 lb (4.0 Kg) |
| Package Weight | 20.26 lb (9.19 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 569,520 |
| Compliant Standards |  IEEE 802.1D Spanning Tree Protocol  IEEE 802.1p CoS Prioritization  IEEE 802.1Q VLAN  IEEE 802.1s  IEEE 802.1w  IEEE 802.1X  IEEE 802.1ab (LLDP)  IEEE 802.3ad  IEEE 802.3af and IEEE 802.3at  IEEE 802.3ah (100BASE-X single/multimode fiber only)  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports  IEEE 802.3 10BASE-T |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | Jumbo Frames
VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast port CoS Trust and Override Scheduling Priority Queuing Configure CoS Priority Queues Weighted Tail Drop DSCP transparency |
| Network security | SSH, SSL and SCP
RADIUS and TACACS+ SNMPv3 crypto 802.1x 802.1x Accounting / MIB 802.1x w/ port security 802.1x w/Voice VLAN 802.1x Guest VLAN 802.1x VLAN assignment 802.1x MAC-Auth Bypass BPDU/Root Guard Port Security Private VALN Edge Storm Control Block unknown unicast and multicast IGMP Snooping IGMP Filter/Throttle |
| Management and Troubleshooting | Auto-MDOX
TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager Cisco Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop Cisco IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB |
| Operating temperature up to 5000 ft (1500 m) | 23F to 113F
(-5C to 45C) |
| Operating temperature up to 10,000 ft (3000 m) | 23F to 104F
(-5C to 40C) |
| Short-term exception at sea level* | 23F to 131F
(-5C to 55C) |
| Short-term exception up to 5000 feet (1500 m)* | 23F to 122F
(-5C to 50C) |
| Short-term exception up to 10,000 feet (3000 m)* | 23F to 113F
(-5C to 45C)Â Â Â Â Â Â Â Â |
| Short-term exception up to 13,000 feet (4000 m)* | 23 to 104F
(-5C to 40C) |
| Storage temperature up to 15,000 feet (4573 m) | -13 to 158F
(-25 to 70C) |
| Operating altitude | Up to 10,000 Feet
(Up to 3000 Meters) |
| Storage altitude | Up to 13,000
(Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
