WS-C2960L-8TS-LL-NEW
Details
  • Switch
  • managed
  • 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
  • desktop
  • rack-mountable
Category
Stock

Additional information

Brand

Cisco

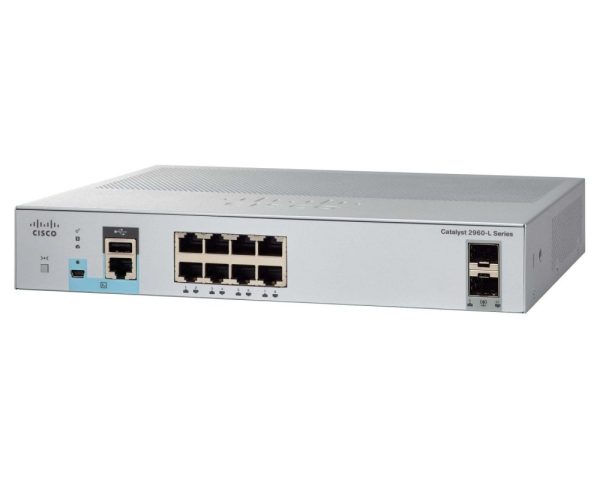

Cisco WS-C2960L-8TS-LL Switch for Operational Simplicity

Cisco WS-C2960L-8TS-LL Switch is a fixed managed and Gigabit Ethernet switch. It provides enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses.


Key Benefits of Cisco WS-C2960L-8TS-LL Switch

Cisco WS-C2960L-8TS-LL Switch is built to simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. It provides a range of security features to limit access to the network and mitigate threats.

10/100/1000 Ethernet Ports 8
Uplink Interfaces 2 SFP
Fanless Y
Dimensions (H x D x W) 1.73 x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm)
Net Weight 4.45 lb (2.02 kg)
RJ45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate (64-byte L3 packets) 14.88 Mpps
Unicast MAC addresses 8K
Maximum active VLANs 64
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 1
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
MTBF in hours (Data) 2,448,133
MTBF in hours (PoE) 315,044
Up to 5,000 ft 23F to 113F (-5C to 45C)
Up to 10,000 ft 23F to 104F (-5C to 40C)
Operating altitude 10,000 ft (3000m)
Operating relative humidity 5% to 90% at 40C
Storage temperature -13 to 158F (-25 to 70C)
Storage altitude 15,000 ft (4500m)
Storage relative humidity 5% to 95% at 65C
Storage altitude Minimum ambient temperature for cold start is 0C (32F)
Electrical Data
Voltage (autoranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.13A to 0.22A
Power rating (maximum consumption) 0.04 kVA
Power consumption (watts)

       0% traffic

       10% traffic

       100% traffic

       Weighted average

13.0

14.8

14.9

14.2

Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity EN55024, CISPR24, EN300386, KN24
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
