WS-C2960L-24TQ-LL-NEW
Details
  • Switch
  • Managed
  • 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  • Desktop
  • Rack-mountable
Category
Stock

Additional information

Brand

Cisco

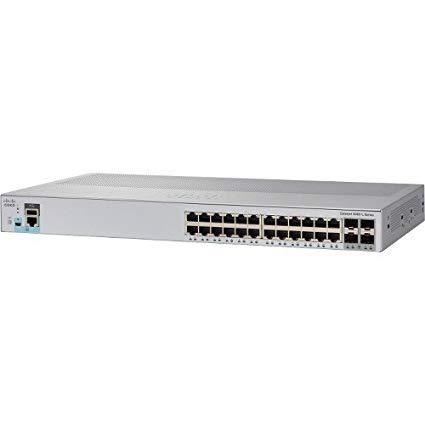

Install Cisco WS-C2960L-24TQ-LL Switch for Great Value Solutions

Cisco WS-C2960L-24TQ-LL Switch features IOS Lan lite, 64 Gbps and 128 Gbps forwarding and switching bandwidth respectively, and 4 x 10G SFP Uplink Interfaces, with 512 MB DRAM.

Key Benefits of Cisco WS-C2960L-24TQ-LL Switch

Cisco WS-C2960L-24TQ-LL Switch is designed for simplified operations, the best-in-class reliability, and maximum better mobile experience for its users. It supports 2960-L Power over Ethernet (PoE) and all necessary applications to add a great value.

Cisco WS-C2960L-24TQ-LL Switch Overview



IOS LAN Lite
Forwarding bandwidth 64 Gbps
Switching bandwidth 128 Gbps
10/100/1000 Ethernet Ports 24
Uplink Interfaces 4 x 10G SFP
Fanless Y
DRAM 512 MB
Flash memory 256 MB
Dimensions (H x D x W) 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
Net Weight 6.06 lb (2.75 kg)
RJ45 Ethernet  1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Forwarding bandwidth 64 Gbps
Switching bandwidth 128 Gbps
Forwarding rate (64-byte L3 packets) 41.67 Mpps
Unicast MAC addresses 8K
Maximum active VLANs 64
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 1
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
MTBF in hours (Data) 2,412,947
MTBF in hours (PoE) 909,838
Up to 5,000 ft 23F to 113F (-5C to 45C)
Up to 10,000 ft 23F to 104F (-5C to 40C)
Operating altitude 10,000 ft (3000m)
Operating relative humidity 5% to 90% at 40C
Storage temperature -13 to 158F (-25 to 70C)
Storage altitude 15,000 ft (4500m)
Storage relative humidity 5% to 95% at 65C
Storage altitude Minimum ambient temperature for cold start is 0C (32F)
Electrical Data
Voltage (autoranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.20A to 0.33A
Power rating (maximum consumption) 0.06 kVA
Power consumption (watts)

       0% traffic

       10% traffic

       100% traffic

       Weighted average

19.4

26.5

26.5

24.1

Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity EN55024, CISPR24, EN300386, KN24
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs Per-port status: link integrity, disabled, activity, speed, and full duplex

System status: system, PoE, and link speed

Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
