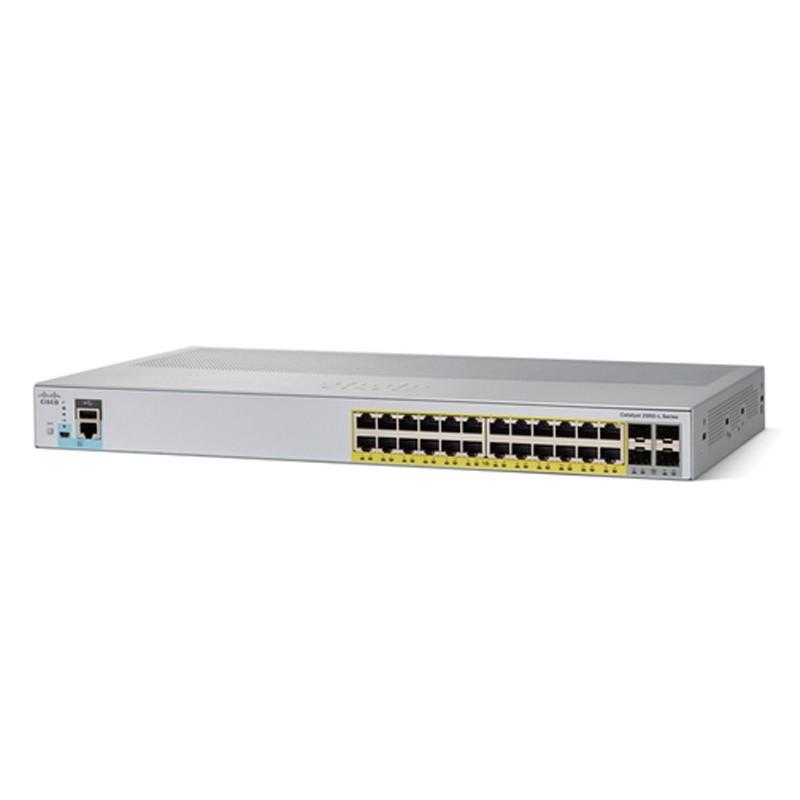

Cisco WS-C2960L-24PS-LL Switch is a 24 port Gigabit Ethernet, PoE switch with 4x 1G SFP uplinks and supports an enhanced version of Cisco LAN lite software image.Â
Cisco WS-C2960L-24PS-LL Switch provides fixed-configuration, Layer 2 and basic Layer 3 enterprise-class access switching solution. It meets requirements of branch offices, conventional workspaces, and out-of-the-wiring-closet applications. Find the Cisco IOS Software-based switches as fanless, easy-to-use, energy-efficient, cost-effective, reliable, and secure. This Cisco Series Switch includes a single fixed power supply.Â
Â
| IOS | LAN Lite |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| 10/100/1000 Ethernet Ports | 24 PoE+ Ports |
| Available PoE Power | 195W |
| Uplink Interfaces | 4 x 1G SFP |
| Fanless | Y |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Dimensions (H x D x W) | 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm) |
| Net Weight | 7.63 lb (3.46 kg) |
| 10/100/1000 Ethernet Ports | 24 |
| Uplink Interfaces | 4 SFP |
| Available PoE Power | 195W |
| Fanless | Y |
| Dimensions (H x D x W) | 1.73 x 10.45 x 17.5 in. (4.4 x 26.5 x 44.5 cm) |
| Net Weight | 7.63 lb (3.46 kg) |
| RJ45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate (64-byte L3 packets) | 41.67 Mpps |
| Unicast MAC addresses | 8K |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 1 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (Data) | 2,412,947 |
| MTBF in hours (PoE) | 909,838 |
| Up to 5,000 ft | 23F to 113F (-5C to 45C) |
| Up to 10,000 ft | 23F to 104F (-5C to 40C) |
| Operating altitude | 10,000 ft (3000m) |
| Operating relative humidity | 5% to 90% at 40C |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidity | 5% to 95% at 65C |
| Storage altitude | Minimum ambient temperature for cold start is 0C (32F) |
| Electrical | PoE |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.21A to 0.26AÂ |
| Â Power rating (maximum consumption) | 0.24 kVA |
|
 Power consumption (watts)
      0% traffic       10% traffic       100% traffic       Weighted average |
25.9
32.9 32.9 30.6 |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class AÂ Â Â Â Â Â Â Â |
| EMC: immunity | EN55024, CISPR24, EN300386, KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Indicator LEDs | Per-port status: Link integrity, disabled, activity, speed, and full-duplex
System status: system, PoE, and link speed |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
CAB-CONSOLE-USB Console cable 6 ft. with USB Type-A and mini-B connectors |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
