WS-C2960CX-8PC-L-NEW
Details
  • Switch
  • Managed
  • 8 x 10/100/1000 (PoE+) + 2 x SFP + 2 x 10/100/1000
  • Desktop
  • Rack-mountable
  • DIN rail mountable
  • Wall-mountable
Category
Stock

Additional information

Brand

Cisco

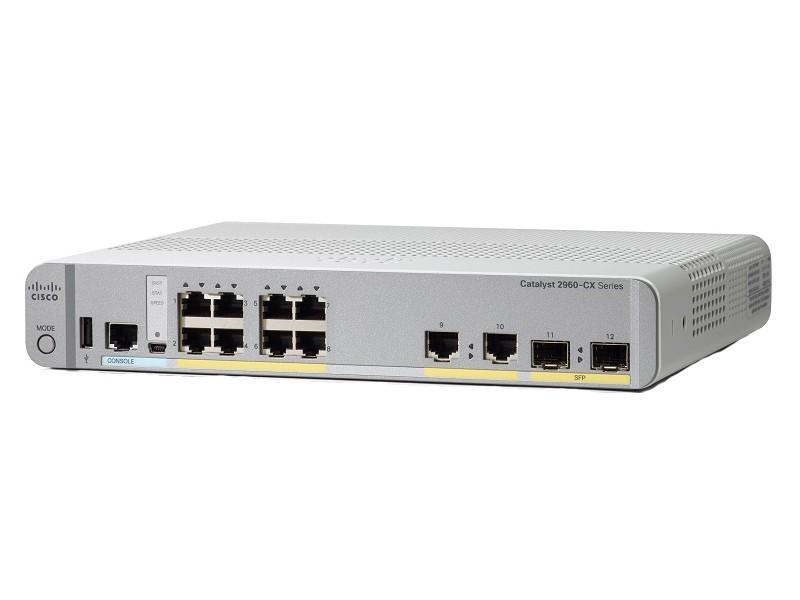

Install Seamless Switching System using Cisco WS-C2960CX-8PC-L

Cisco WS-C2960CX-8PC-L Catalyst Switch is aimed for easy expansion of Catalyst switching system outside the wiring closet to make sure workspaces, wireless LANs, and PoE device connection work seamlessly. This switch has fan redundant design with small form factor for access layer deployments in space-constrained and multiple cable-fitted environments.

Key Benefits of Cisco WS-C2960CX-8PC-L

Ideal for network deployment optimization, Cisco WS-C2960CX-8PC-L Catalyst Switches are Gigabit Ethernet (GbE) managed switches to meet requirements for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity, especially in premium places. These Cisco compact switches can deliver efficient IP connectivity with a single copper or fiber cable from the wiring closet for devices such as IP phones, wireless access points, surveillance cameras, video endpoints and PCs.

Cisco WS-C2960CX-8PC-L Catalyst Switches has flexible mounting options and open up a variety of network design and connectivity options for their uses in offices, classrooms, hotels, retail stores, and in any large commercial locations. This switch setup requires shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as the devices join the network. This feature of the Cisco WS-C2960CX-8PC-L Catalyst Switches benefits by eliminating the need for expensive and inflexible cabling infrastructure.



Product Code WS-C2960CX-8PC-L
Feature Set LAN Base
Uplink Interfaces 2 x 1G copper plus 2 x 1G SFP
Ports 8 x 10/100/1000 Gigabit Ethernet ports
Available POE Power 124W
Forwarding Bandwidth 12 Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 4.44 x 26.9 x 23.8 cm
Package Weight 4.65 Kg





Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE
Output Ports
8 PoE+
Available
PoE Power
124W
Uplinks 2 x 1G copper plus
2 x 1G SFP
Default Software LAN Base
Forwarding Bandwidth 12 Gbps
Switching Bandwidth (full-duplex capacity) 24 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 255
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet  17.9 mpps
Power connectors – Customers can provide power to a switch by using the internal power supply.
The connector is located at the back of the switch.
The internal power supply is an auto-ranging unit
– The internal power supply supports input voltages between 100 and 240VAC
– Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Indicators Per-port status: Link integrity, disabled, activity, speed, full-duplex
System status: System, link status, link duplex, link speed
Dimensions
(H x W x D)
1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
Weight 5.0 lb (2.27 Kg)
Package Weight 10.25 lb (4.65 Kg)
Operating temperature up to 5000 ft (1524 m) -5C to +45C
(+23F to +113F)
Operating* temperature up to 10,000 ft (3048 m) -5C to +45C
(+23F to +113F)
Storage temperature up to 15,000 ft (4572 m) -25C to +70C
(-13F to +158F)
Operating altitude Up to 3048 m
(Up to 10,000 ft)
Storage altitude Up to 4000 m
(Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
Meantime between failure (MTBF) 569,530
