SG550XG-24F-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 22 x 10 Gigabit SFP+ + 2 x combo 10GBase-T
  • Desktop
  • Rack-Mountable
Category
Stock

Additional information

Brand

Cisco

Your business is growing, and that means more customers, more opportunities, and more attention on your company. The only problem: Your network was built for a smaller operation. As you add more devices, applications, and users, your IT environment will become increasingly difficult and expensive to manage. Even worse, as the network becomes more complex and overloaded, your users are likely to see sluggish performance and even outages. With customers and employees depending on your business more than ever before, a slow or unreliable network is not an option. You need an IT backbone that provides excellent performance, nonstop availability, and advanced security. The ideal network will be easy to manage, support advanced features that will grow with your company, and be at a price that's affordable. The Cisco 550X Series Stackable Managed Switches are the next-generation stackable Managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The Cisco 550XG models provide 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

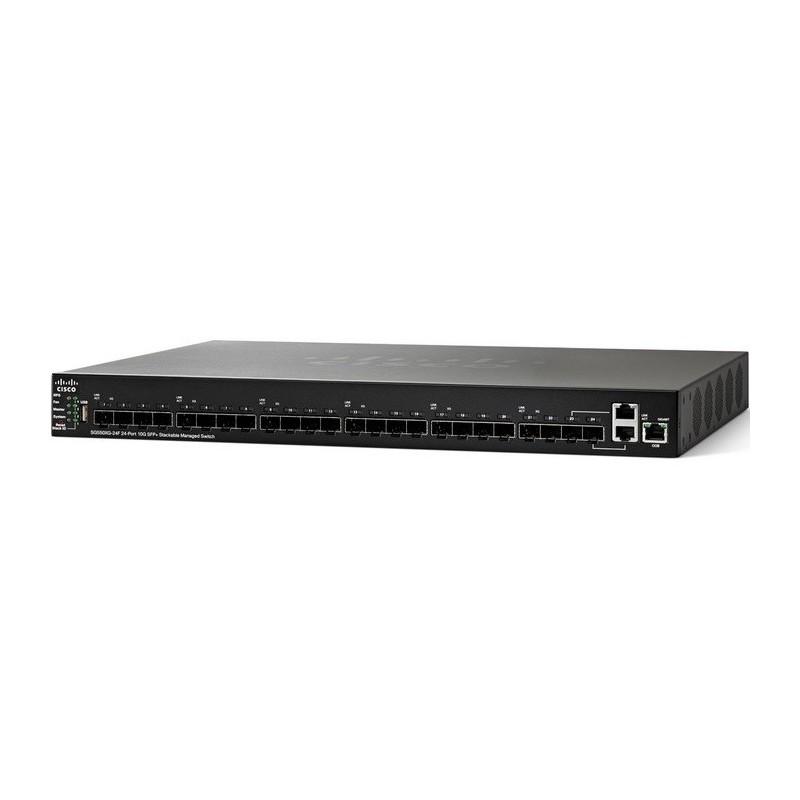

Short Description Switch: L3 managed, 22 x 10GE SFP+ + 2 x 10GE combo, rack-mountable
Device type Switch: 10G, 24 ports, L3 managed
Enclosure type Rack-mountable, 1RU
Ports 22 10GE SFP+ slots + 2 10GE copper/SFP+ combo plus 1 GE OOB management
Power over Ethernet (PoE) None
Switching capacity 480 Gbps
Forwarding performance (64-byte packets) 357.12 Mpps
MAC address table size 64,000 entries
Capacity (active VLANS) 4000
Routing protocol RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features Stacking, flow control, Layer 2 switching, Layer 3 switching,

VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button,

LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection,

IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, hardware redundancy

Compliant IEEE standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab,
802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, RPS, Stack ID, Link/Speed per port
Interfaces 22 x 10GE SFP+ slots, 2 x 10GBASE-T/SFP+ combo, 1 x GE OOB port, 1 x console, RJ45, 1 x RPS port
Power supply Internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in. (440 mm)
Depth 13.8 in. (350 mm)
Height 1.7 in. (44 mm)
Weight 9.17 lb (4.16 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32-F (0-C)
Maximum operating temperature 122-F (50-C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4-F (-20-C)
Maximum storage temperature 158-F (70-C)
Humidity range storage 10-90% (noncondensing)
