Features
Content

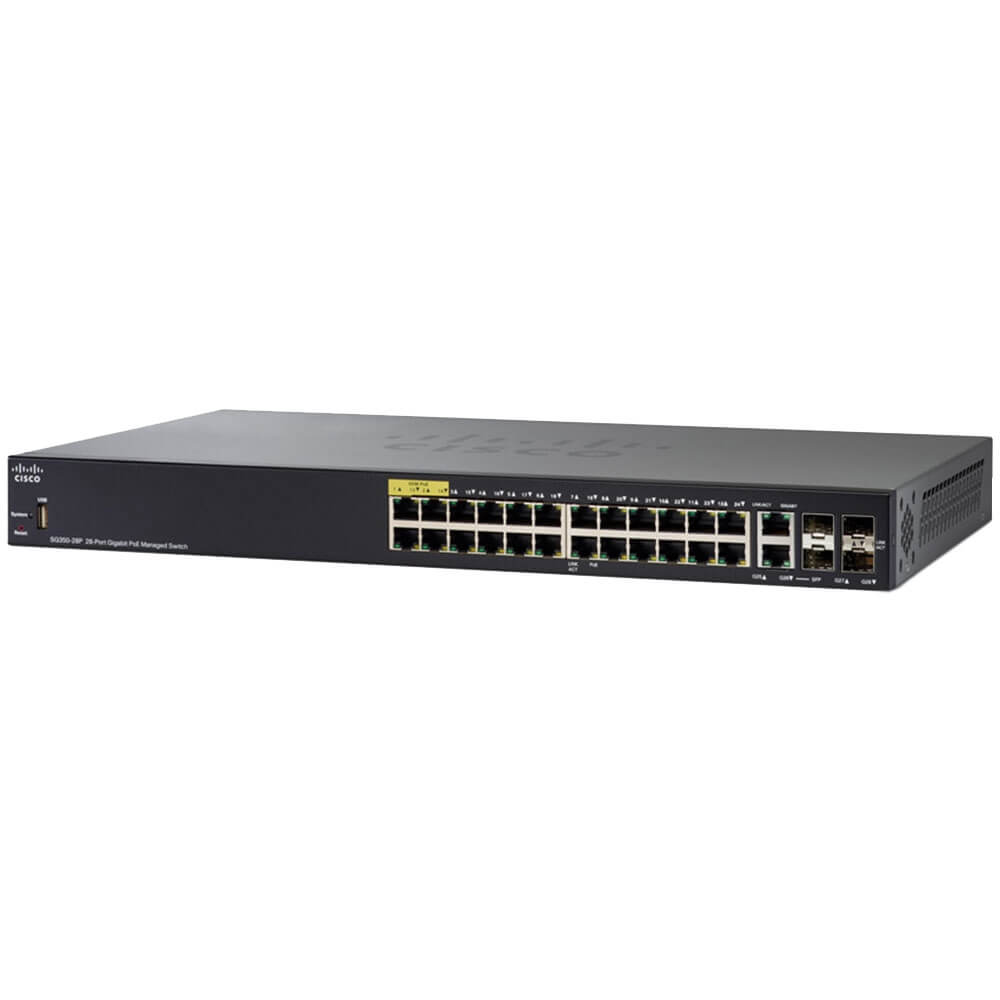

SG350-28MP-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x combo Gigabit SFP
  • Rack-Mountable
  • PoE+ (382 W)
Category
Stock

Additional information

Brand

Cisco

The Cisco 350 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable Managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 350 Series provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
Device type Switch 1 G – 28 ports
Enclosure type Rack-mountable – 1U
Ports 24 x 10/100/1000 + 4 x Gigabit SFP (2 combo)
Power over Ethernet (PoE) PoE+ (24 ports, 382 W)
Performance Switching capacity : 56 Gbps ? Forwarding performance (64-byte packet size) : 38.69 Mpps
MAC address table size 16K entries
Capacity 4096 active VLANs
Jumbo frame Yes
Remote management protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, syslog support, DoS attack prevention,

port mirroring, DiffServ support, weighted round-robin (WRR) queuing, broadcast storm control, IPv6 support, multicast storm

control, unicast storm control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP)

support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, access control list (ACL)

support, quality of service (QoS), jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts

Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP),

IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az

RAM 512 MB
Flash memory 256 MB flash
Status indicators System, Link/Speed per port, PoE
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 (24 x PoE+)  2 x combo SFP slot + RJ-45 ? 2 x SFP slot

1 x USB port – file management ?1 x RJ-45 console  – management

Power device Power supply – internal
Voltage required AC 120/230 V (50/60 Hz)
Width 17.3 in
Depth 10.12 in
Height 1.5 in
Weight 8.44 lbs
Mounting kit Included
MTBF 213,373 hours
Compliant standards UL 60950, FCC Part 15 A, CSA 22.2
Min operating temperature 32 -F
Max operating temperature 104 -F
Humidity range operating 10 – 90% (non-condensing)
Min storage temperature -4 -F
Max storage temperature 158 -F
Humidity range storage 10 – 90% (non-condensing)
