Features
Content

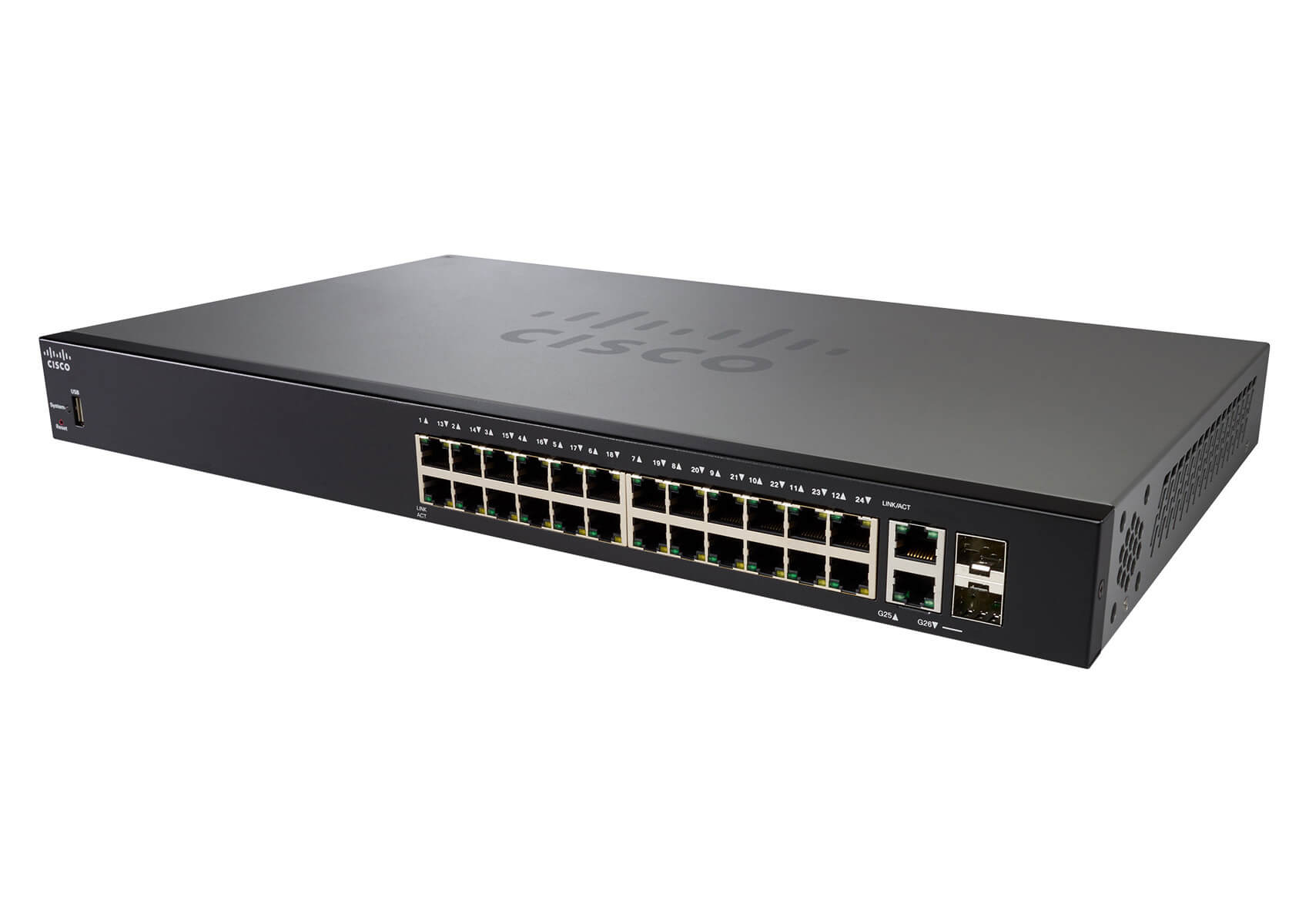

SG250X-24-K9-NEW
Details
  • Switch
  • L3
  • Smart
  • 24 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
  • Rack-Mountable
Category
Stock

Additional information

Brand

Cisco

Next-generation 250 Series Smart Switches combine powerful performance and reliability with a suite of features that you need for a solid business network. With Smart Network Application, FindIT Network Manager, and Network Plug and Play (PnP) support, you can deploy and configure a complete business network in minutes.
Device type Switch, 1 G, 24 ports
Enclosure type Rack-mountable, 1 RU
Ports 24 x 10/100/1000, 2 x 10 GE copper, 2 x 10 GE SFP+
Performance 128-Gbps switching capacity, 95.23-Mpps forwarding performance (64-byte packet size)
MAC address table size 8k entries
Capacity 256 active VLANs
Jumbo frame Yes
Remote management protocol SNMP, RMON, HTTP, HTTPS, TFTP, Telnet, SSH
Features Layer 2 switching, Layer 3 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping,

Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing,

Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support,

Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree (MSTP),

Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS),

jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts

Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,

IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w,

IEEE 802.1x, IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az

RAM 512 MB
Flash memory 256 MB flash
Status indicators System, link/speed per port
interfaces 24 x 10BASE-T/100BASE-TX/1000BASE-T, RJ-45, 2 x 10GBASE-T, 2 x SFP+
Power device Power supply, internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in (440 mm)
Depth 10.12 in (257 mm)
Height 1.45 in (44 mm)
Weight 5.86 lb (2.66 kg)
Mounting kit Included
MTBF 130,255 hours
Compliant standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32F (0C)
Maximum operating temperature 122F (50C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4F (-20C)
Maximum storage temperature 158F (70C)
Humidity range storage 10-90% (noncondensing)
