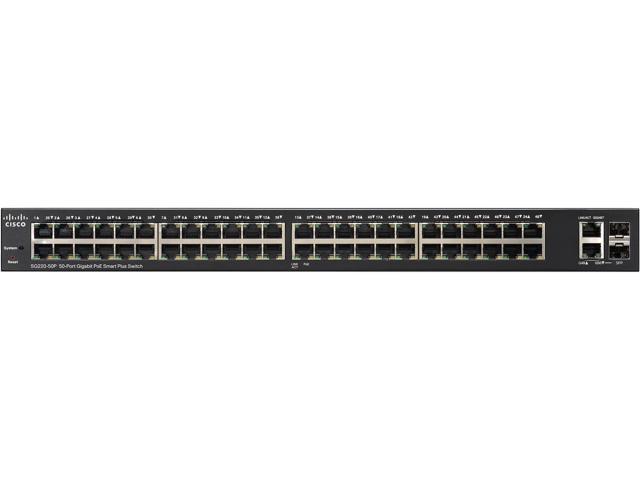

SG220-50P-K9-NEW
Details
  • Switch
  • Managed
  • 4 x 10/100/1000 (PoE+) + 44 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
  • desktop
  • rack-mountable
  • PoE+ (375 W)
Category
Stock

Additional information

Brand

Cisco

Cisco Small Business 220 series smart plus switches bridge the gap between Managed and smart switches to offer customers the best of both worlds. Combining powerful performance with reliability, they provide the higher levels of security, management, and scalability you expect from Managed switches, affordably priced like smart switches. The Cisco 220 series switches provide the management capabilities, enhanced security, and quality of service features needed to support business-class data, voice, security, and wireless services.
Device type Switch – 50 ports
Enclosure type Desktop, rack-mountable – 1U
Ports 48 x 10/100/1000 + 2 x combo Gigabit SFP
Power over Ethernet (PoE) PoE and PoE+
Performance Switching capacity: 74.41 Mpps ; Forwarding performance (64-byte packet size): 100 Gbps
MAC address table size 8192 entries
Capacity 256 active VLANs
Remote management protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Jumbo frame support 9 KB
Authentication method Secure Shell (SSH), RADIUS, TACACS+
Features Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, IGMP Querier,

Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing,

Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, IPv6 support, SNTP support, STP support,

RSTP, MSTP, TFTP support, HTTPS, QoS, acces control list, QinQ VLAN, guest VLAN, auto voice VLAN,

GVRP/GARP, BPDU Guard, SSH, SSL, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol

Compliant standards IEEE 802.3, 802.3u, 802.3z, 802.3az Energy Efficient Ethernet,

802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP,

IEEE 802.1s MSTP, 802.3af PoE, 802.3at PoE

RAM 128 MB
Flash memory 32 MB
Status indicators Link activity, port transmission speed, system, PoE
Interfaces 50 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 ; 2 x SFP (mini-GBIC)
Power device Power supply – internal
Voltage required 100-240 V, 50-60 Hz, Internal
Width 17.3 in (440 mm)
Depth 13.8 in (350 mm)
Height 1.7 in (44 mm)
Weight 11.64 lb (5.28 kg)
Rack mounting kit Included
Compliant standards UL 60950, FCC Part 15 A, CSA 22.2
Localization English, Chinese (simplified)
Minimum operating temperature 32F (0C)
Maximum operating temperature 122F (50C)
Humidity range operating 10% to 90% (relative, non-condensing)
Minimum storage temperature -4F (-20C)
Maximum storage temperature 158F (70C)
Humidity range storage 10% to 90% (relative, non-condensing)
