SF550X-48MP-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 48 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
  • Rack-Mountable
  • PoE+ (740 W)
Category
Stock

Additional information

Brand

Cisco

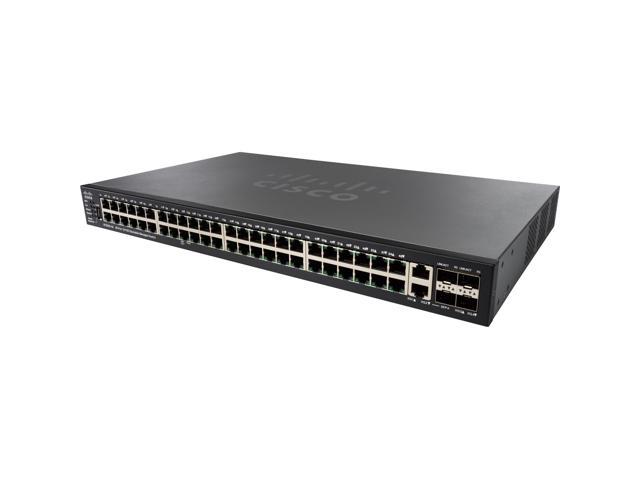

Use Cisco SF550X-48MP-K9 Switch for High Bandwidth Applications & Technologies

Cisco SF550X-48MP-K9 Switch provides the advanced feature set for growing businesses. It offers high bandwidth applications and technologies.

Key Benefits of Cisco SF550X-48MP-K9 Switch

Cisco SF550X-48MP-K9 Switch is built to improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications.

Short Description Switch: L3 managed, 48 x 10/100 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type Switch: 100M, 48 ports, L3 managed
 Enclosure type Rack-mountable, 1RU
Ports 48 x 10/100 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE) PoE, PoE+ and 60W PoE (740W)
Switching capacity 89.6 Gbps
Forwarding performance (64-byte packets) 66.66 Mpps
MAC address table size 16,000 entries
Capacity (active VLANS) 4000
Routing protocol RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features Stacking, flow control, Layer 2 switching, Layer 3 switching,
VLAN support, IPv6 support, Spanning Tree Protocol (STP) support,
Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support,
quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP),
advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces 48 x 10BASE-T/100Base-TX, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply Internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in. (440 mm)
Depth 13.8 in. (350 mm)
Height 1.7 in. (44 mm)
Weight 11.38 lb (5.16 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32-F (0-C)
Maximum operating temperature 122-F (50-C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4-F (-20-C)
Maximum storage temperature 158-F (70-C)
Humidity range storage 10-90% (noncondensing)
