Features
Content

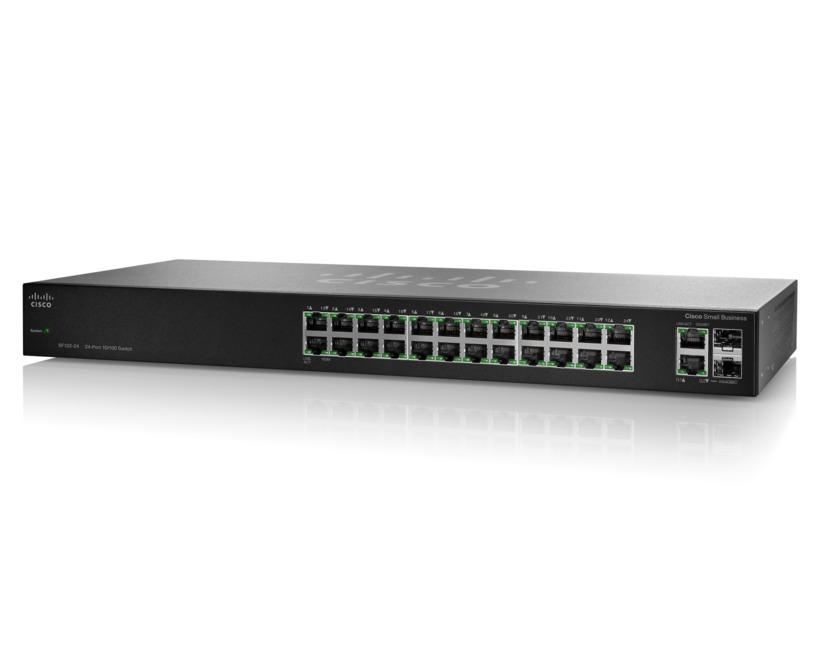

SF112-24-NEW
Details
  • Switch
  • unmanaged
  • 24 x 10/100 + 2 x combo Gigabit SFP
  • rack-mountable
Category
Stock

Additional information

Brand

Cisco

Part of the Cisco Small Business Series of networking solutions, Cisco 100 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity to connect your small business office. These switches are designed to suit any office space and help optimize power efficiency. They provide long-term investment protection and support for advanced features like the quality of service (QoS) - all in a switch that you can set up by yourself in just minutes.
Device type Switch – 24 ports – unmanaged
Enclosure type Rack-mountable – 1U
Ports 24 x 10/100 + 2 x combo Gigabit SFP
Power over Ethernet (PoE) N/A
Performance Switching capacity: 8.8 Gbps  Forwarding performance (64-byte packet size) : 6.5 Mpps
MAC address table size 512 entries
Jumbo frame support Yes
Features Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x
Status indicators Power, link/activity, cable diagnostics, loop detection
Interfaces 24 x 10Base-T/100Base-TX – RJ-45 i 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 i 2 x SFP (mini-GBIC)
Power device Power supply – internal
Voltage required 100-240V AC/50-60 Hz universal input
Electric current required N/A
Width 17.4 in
Depth 8 in
Height 1.7 in
Weight 4.9 lbs
Fanless Yes
Compliant standards UL 60950, FCC CFR47 Part 15, CSA 22.2
Localization Chinese (simplified), German, French, Italian, Spanish, Japanese
OS required N/A
Min operating temperature 32 F
Max operating temperature 104 F
Humidity range operating 10 – 90% (non-condensing)
Min storage temperature -4 F
Max storage temperature 158 F
Humidity range storage 10 – 90% (non-condensing)
