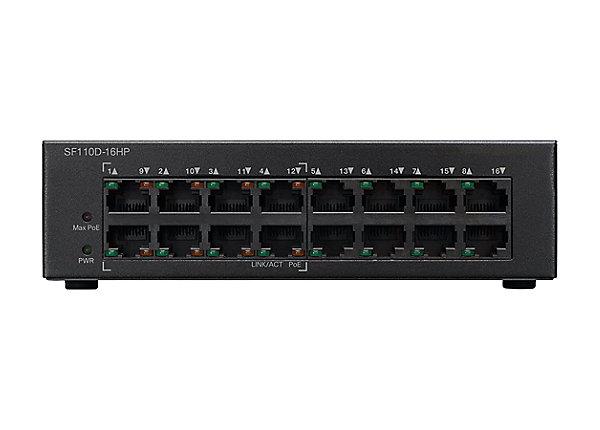

SF110D-16HP-NEW
Details
  • Switch
  • unmanaged
  • 8 x 10/100 + 8 x 10/100 (PoE)
  • desktop
  • wall-mountable
Category
Stock

Additional information

Brand

Cisco

Part of the Cisco Small Business Series of networking solutions, Cisco 100 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity to connect your small business office. These switches are designed to suit any office space and help optimize power efficiency. They provide long-term investment protection and support for advanced features like quality of service (QoS) - all in a switch that you can set up by yourself in just minutes.
Device type Switch – 16 ports – unmanaged
Enclosure type Desktop
Ports 16 x 10/100
Power over Ethernet (PoE) PoE
Performance Switching capacity: 3.2 Gbps  Forwarding performance (64-byte packet size) : 2.4 Mpps
MAC address table size 8000 entries
Jumbo frame support N/A
Features Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x, 802.3af
Status indicators Power, link/activity, PoE, cable diagnostics, loop detection
Interfaces 16 x 10Base-T/100Base-TX – RJ-45 – PoE
Power device Power adapter – external
Voltage required DC 48 V
Electric current required 2.0 Amps
Width 5.1 in
Depth 5.1 in
Height 1.1 in
Weight 1.8 lbs
Fanless Yes
Compliant standards FCC Class A certified
Localization N/A
OS required N/A
Min operating temperature 32 F
Max operating temperature 104 F
Humidity range operating 10 – 90% (non-condensing)
Min storage temperature -4 F
Max storage temperature 158 F
Humidity range storage 10 – 90% (non-condensing)
