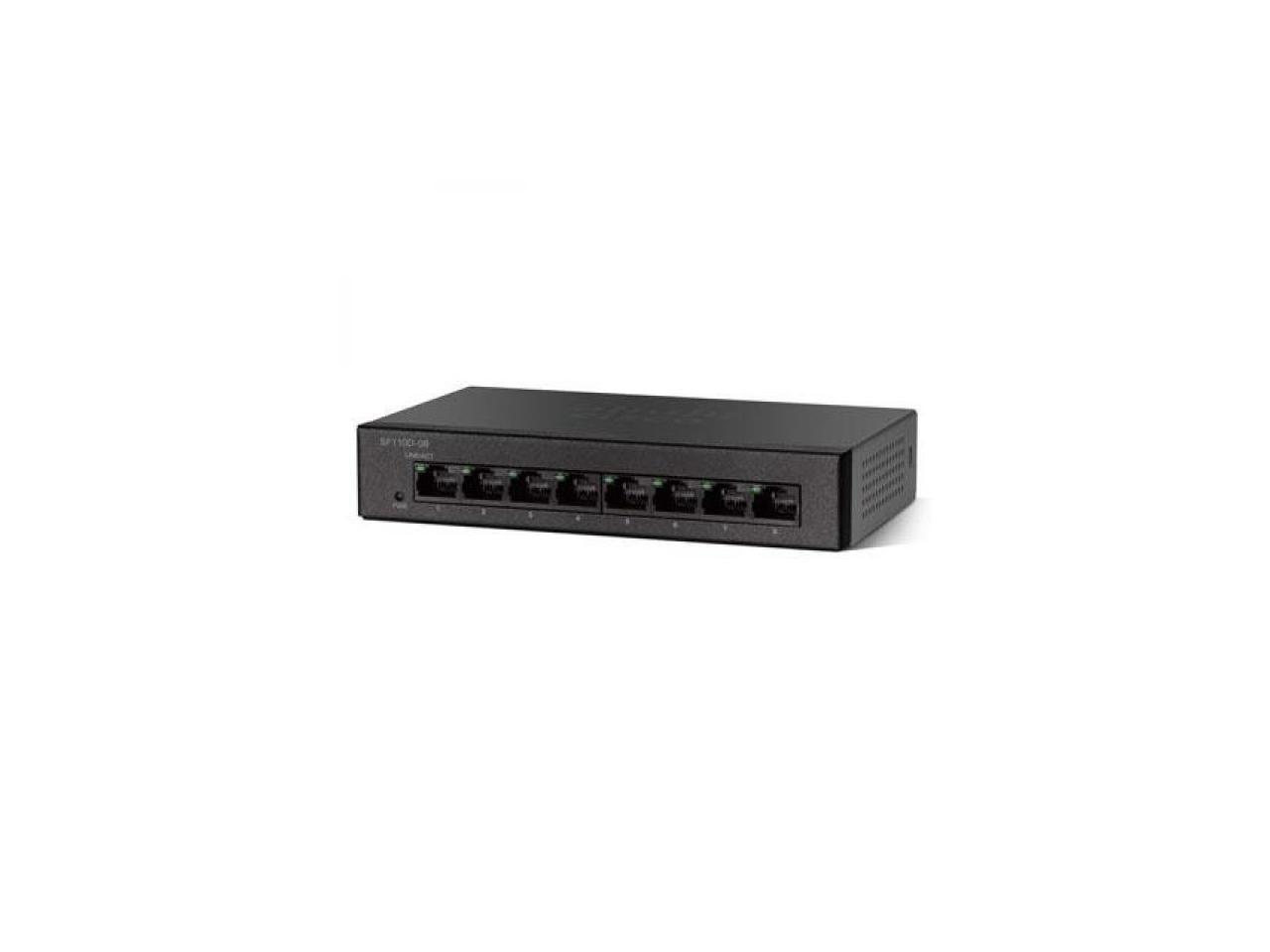

Cisco SF110D-08 Switch

Features
Features Content	SF110D-08-NEW
Features Details	Switch unmanaged 8 x 10/100 desktop wall-mountable DC power
Features Category	110 Series SMB
Features Stock	Ask For Quote

Additional information

Brand	Cisco

HELP ME FIND

Description
Specifications

Part of the Cisco Small Business Series of networking solutions, Cisco 100 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity to connect your small business office. These switches are designed to suit any office space and help optimize power efficiency. They provide long-term investment protection and support for advanced features like quality of service (QoS) - all in a switch that you can set up by yourself in just minutes.

Device type	Switch – 8 ports – unmanaged&nbsp;
Enclosure type	Desktop
Ports	8 x 10/100
Power over Ethernet (PoE)	N/A
Performance	Switching capacity: 1.6 GbpsÂ Forwarding performance (64-byte packet size) : 1.2 Mpps
MAC address table size	1000 entries
Jumbo frame support	N/A
Features	Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x
Status indicators	Power, link/activity, cable diagnostics, loop detection
Interfaces	8 x 10Base-T/100Base-TX – RJ-45
Power device	Power adapter – external
Voltage required	DC 12 V
Electric current required	500 mA (operating)
Width	5.1 in
Depth	5.1 in
Height	1.1 in
Weight	13.3 oz
Fanless	Yes
Compliant standards	UL 60950, FCC CFR47 Part 15, CSA 22.2
Localization	Chinese (simplified), German, French, Italian, Spanish, Japanese
Min operating temperature	32 F
Max operating temperature	104 F
Humidity range operating	10 – 90% (non-condensing)
Min storage temperature	-4 F
Max storage temperature	158 F
Humidity range storage	10 – 90% (non-condensing)
