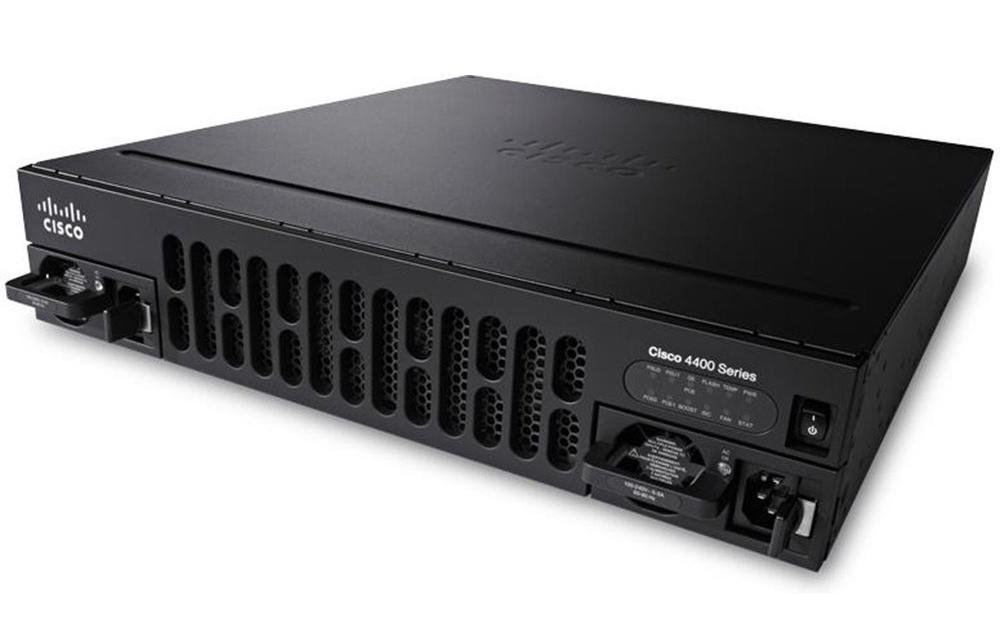

Cisco ISR4451-X-SEC/K9 Router

The Cisco ISR4451-X-SEC/K9Integrated Services Router revolutionizes the delivery of application-aware services in a branch-office environment. This platform extends the Cisco ISR Family by providing Gigabit performance with extensive Layer 7 services hosted internally to the branch office while maximizing operating expenses (OpEx) savings. The Cisco ISR4451-X-SEC/K9 offers a multicore CPU architecture running modular Cisco IOS XE software that quickly adapts to the changing needs of your branch-office environment, and enables IT to roll out services at the speed of business. The separation of the control and data planes provides the ability to deliver application-aware network services while maintaining a stable platform and a high level of performance during periods of heavy network load. With the ability to integrate application-aware services and the ability to scale performance without a complete equipment upgrade, the Cisco ISR4451-X-SEC/K9 offers exceptional total cost of ownership (TCO) savings and network agility through the intelligent integration of market-leading security, unified communications, and application services. The Cisco ISR4451-X-SEC/K9 offers encryption acceleration, voice- and video-capable architecture, application firewall, call processing, and embedded services. In addition, the platform supports a range of wired connectivity options such as T1/E1, T3/E3, and fiber Gigabit Ethernet. This platform offers superior performance and flexibility for network deployments across large and medium-sized enterprise offices.



Cisco ISR4451-X-SEC/K9 Router Overview



Bundle	 w/SEC license
Aggregate Throughput	1 Gbps to 2Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module (SM-X) slot	2
NIM (Network Interface Modules) slots	3
Onboard ISC slot	1
DDRM (data plane)	2 GB (default) / 2 GB (maximum)
DDRM (control/services plane)	4 GB (default) / 16 GB (maximum)
Flash Memory	8 GB (default) / 32 GB (maximum)
Power-supply options	nternal: AC, DC (roadmap) and PoE
Rack height	2 RU
Dimensions (H x W x D)	88.9 x 438.15 x 469.9 mm

Description	Cisco ISR 4451 Sec bundle w/SEC license
Aggregate Throughput	1 Gbps to 2Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slots	2
Doublewide service-module slots	1 (assumes no single-wide SM-X modules installed)
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)       Â	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	2 GB
Maximum memory DDR3 ECC DRAM (data plane)	2 GB
Default memory DDR3 ECC DRAM (control/services plane)	4 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	16 GB
Default flash memory	8 GB
Maximum flash memory	32 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port – RJ45 (up to 115.2 kbps)	1
Serial auxiliary port – RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC and PoE
Redundant power supply	Internal: AC, DC and PoE
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	<50 A
Typical power (no modules) (watts)	158
Maximum power with AC power supply (watts)	450 (no PoE)
Maximum power with PoE power supply (platform only) (watts)	1000 with PoE redundant 1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts)	500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts)	50 W no redundancy
