ISR4431-VSEC/K9-NEW
Details
  • Voice Security Bundle
  • router
  • GigE
  • WAN ports: 4
  • rack-mountable
Category
Stock

Additional information

Brand

Cisco

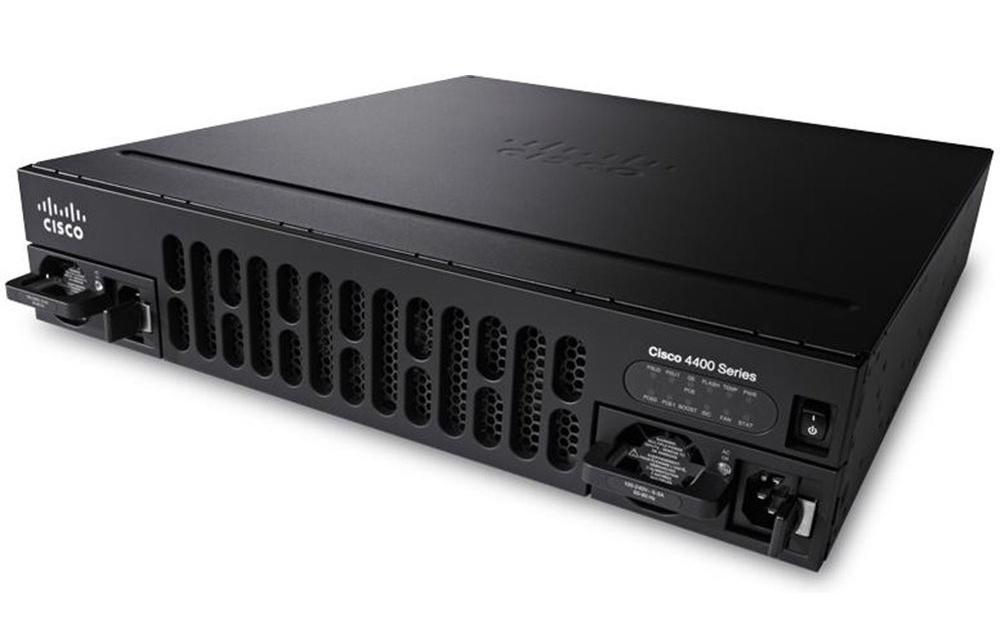

Cisco ISR4431-VSEC/K9 Router Overview



The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.



Aggregate Throughput 500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module (SM-X) slot 0
NIM (Network Interface Modules) slots 3
Onboard ISC slot 1
DDRM (data plane) 2 GB (default) / 2 GB (maximum)
DDRM (control/services plane) 4 GB (default) / 16 GB (maximum)
Flash Memory 8 GB (default) / 32 GB (maximum)
Power-supply options Internal: AC, DC, and PoE
Rack height 1 RU
Dimensions (H x W x D) 43.9 x 438.15 x 507.2 mm
Doublewide service-module slots 0
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 2 GB
Maximum memory DDR3 ECC DRAM (data plane) 2 GB
Default memory DDR3 ECC DRAM (control/services plane) 4 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 16 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port – RJ45 (up to 115.2 kbps) 1
Serial auxiliary port – RJ45 (up to 115.2 kbps) 1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply Internal: AC, DC, and PoE
AC input voltage 100 to 240 VAC auto-ranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 65
Maximum power with AC power supply (watts) 250 (no PoE)
Maximum power with PoE power supply (platform only) (watts) 500 with PoE redundant
Maximum endpoint PoE power available from PoE power supply (watts) 250 W with optional redundancy
