Features
Content
ISR4431/K9-NEW
Details
  • 500Mbps-1Gbps system throughput
  • 4 WAN/LAN ports
  • 4 SFP ports
  • multi-Core CPU
  • Dual-power
  • Security
  • Voice
  • WAAS
  • Intelligent WAN
  • OnePK
  • AVC
Category
Stock

Additional information

Brand

Cisco

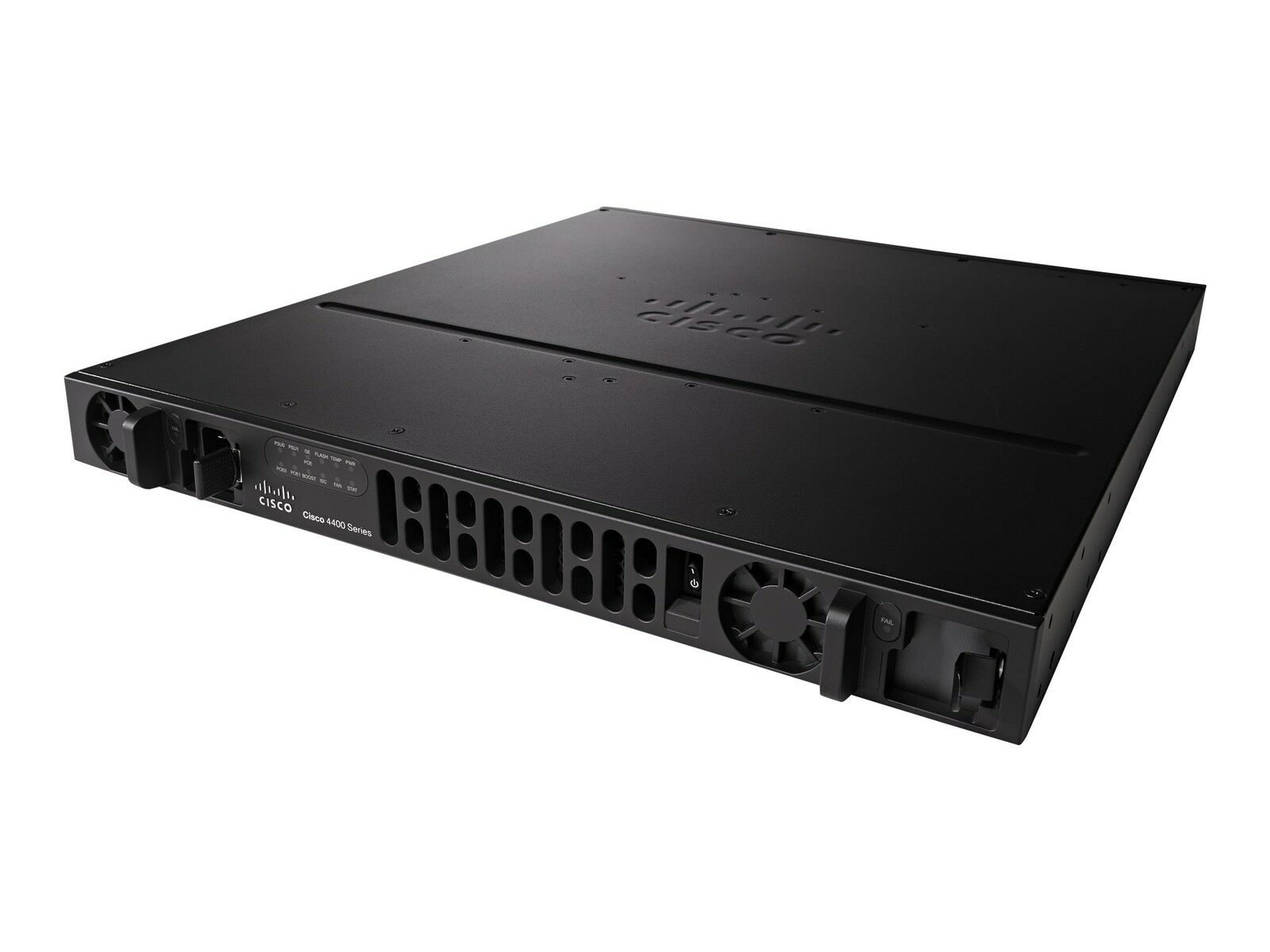

Integrated Services Cisco ISR4431/K9 Router

Cisco ISR4431/K9 Router is built to support 3 Network Interface Modules (NIM) slots and deliver 500 Mbps to 1 Gbps aggregate throughput.

Key Benefits of Cisco ISR4431/K9 Router

Cisco ISR4431/K9 Router supports two kinds of DDRM, data plane, and control/services plane. This feature enables administrators to manage the router easily.



Aggregate Throughput 500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module (SM-X) slot 0
NIM (Network Interface Modules) slots 3
Onboard ISC slot 1
DDRM (data plane) 2 GB (default) / 2 GB (maximum)
DDRM (control/services plane) 4 GB (default) / 16 GB (maximum)
Flash Memory 8 GB (default) / 32 GB (maximum)
Power-supply options Internal: AC, DC, and PoE
Rack height 1 RU
1 RU Dimensions (H x W x D)
Package Weight 20.88 Kg
Doublewide service-module slots 0
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 2 GB
Maximum memory DDR3 ECC DRAM (data plane) 2 GB
Default memory DDR3 ECC DRAM (control/services plane) 4 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 16 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port – RJ45 (up to 115.2 kbps) 1
Serial auxiliary port – RJ45 (up to 115.2 kbps) 1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply Internal: AC, DC, and PoE
AC input voltage 100 to 240 VAC auto-ranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 65
Maximum power with AC power supply (watts) 250 (no PoE)
Maximum power with PoE power supply (platform only) (watts) 500 with PoE redundant
Maximum endpoint PoE power available from PoE power supply (watts)
250 W with optional redundancy
