| Features | |||
|---|---|---|---|
|
Content |
IE-5000-16S12P-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|
Â
Â

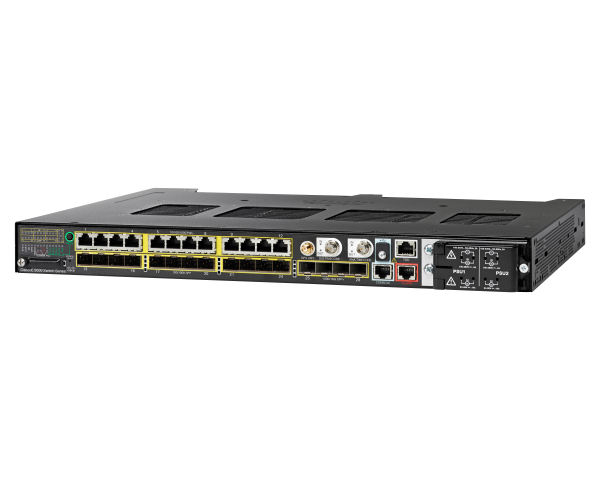

The Cisco Industrial Ethernet (IE) 5000 Series switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line-rate aggregation and copper Power over Ethernet (PoE) connectivity in harsh industrial environments.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining.
Â
| Total ports | 28 |
| Uplinks | 4 SFP/SFP+ (1G) |
| SFP fiber ports (S) | 12 (FE/GE) |
| Copper 10/100/1000 PoE/PoE+ ports | 12 (10/100/1000M) |
| Default software | LAN Base |
| Dimensions (H x W x D) |  1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H  / PWR-RGD-LOW-DC-H  1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
| Weight | Â Without Power Supply: 13.7 lb (6.21 kg) Â PWR-RGD-AC-DC-H: 2.55 lb (1.16kg) Â PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg) Â PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
| Hardware | Â 1-GB DRAM
 256-MB onboard flash memory  1-GB removable SD flash memory card  Mini-USB connector  RJ-45 traditional console connector  GPS antenna interface (needs future software support) – GPS antenna input  Analog Timing I/O interface (needs future software support) – For analog IRIG support  Digital Timing I/O interface (needs future software support) – For digital timing such as IRIG-B TTL  TOD interface (needs future software support) – Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support       |
| Alarm | Â Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
| Power consumption | Â Maximum of 90W not including PoE consumption |
| Accessories | Â SD-IE-1GB= – Spare SD card |
| Forwarding bandwidth | 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking |
| Switching bandwidth | 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
| Forwarding rate | 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate) |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,005 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
