| Features | |||
|---|---|---|---|
|
Content |
IE-4000-8GT4G-E-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|

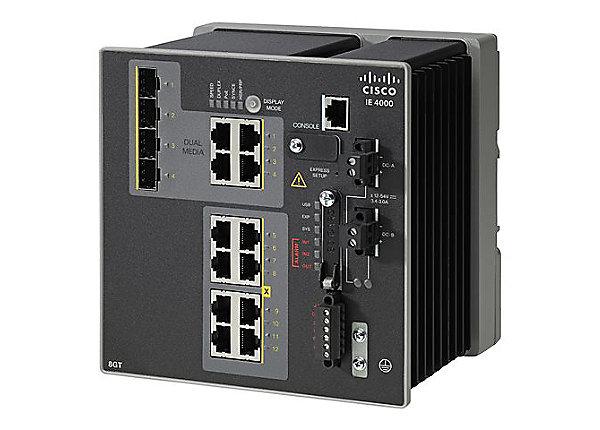

Cisco IE-4000-8GT4G-E Switch provides high-grade bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. It can deliver highly secure access and industry-leading convergence by using the Cisco Resilient Ethernet Protocol (REP). It is built to withstand extreme environments and adhere to overall IT network design, compliance, and performance requirements. Â
Cisco IE-4000-8GT4G-E Switch is ideal for industrial Ethernet applications, which include like factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. Â
Cisco IE-4000-8GT4G-E Switch has a user-friendly web device manager that provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
Â
| Total Ports | 12 |
| GE combo uplinks (4G) | 4 GE combo uplink ports |
| RJ-45 copper ports (T) | 8 GE |
| Default software | LAN Base feature set |
| Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
| Weight |
6.35 pounds (2.88 kg) |
| Total Ports | 12 |
| GE combo uplinks (4G) | 4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)Â Â Â Â Â Â Â Â |
| RJ-45 copper ports (T) | 8 GE |
| Default software | LAN Base feature set (Can be upgraded to IP Services at a fee.) |
| Hardware | Â 1GB DRAM
 128-MB onboard flash memory  1-GB removable SD flash memory card  Mini-USB connector  RJ-45 connector |
| Alarm | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Power Input | Â Redundant DC input voltage with operating range: nominal 9.6 to 60VDC
 Maximum DC input current: 3.7A |
| Power consumption | 35W |
| Forwarding rate | Line-rate for all ports and all packet sizes |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
