IE-4000-8GS4G-E-NEW
Details
  • Switch
  • Managed
  • 8 x Gigabit SFP + 4 x combo Gigabit SFP
  • DIN Rail Mountable
  • DC power
Category
Stock

Additional information

Brand

Cisco

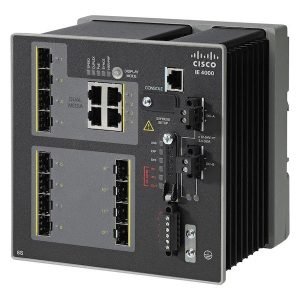

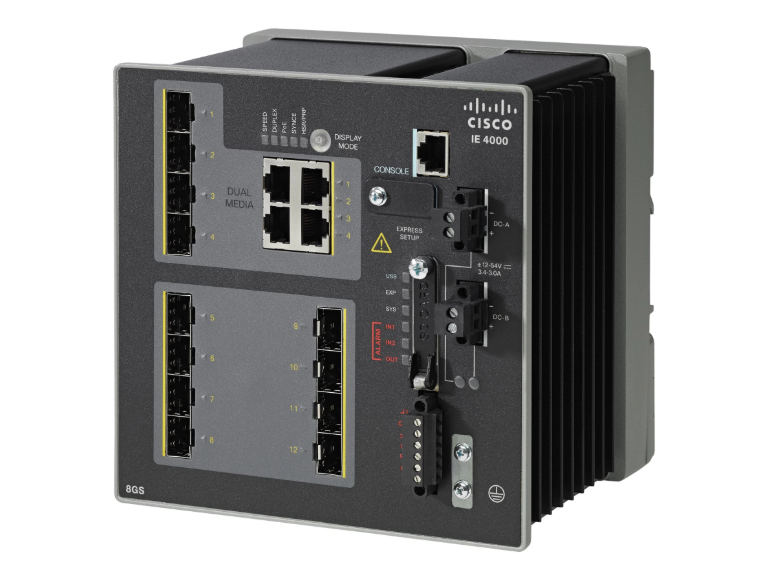

Use Cisco IE-4000-8GS4G-E Switch for Extreme Environments

Cisco IE-4000-8GS4G-E Switch offers superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. Cisco IE-4000-8GS4G-E Switch is built to deliver highly secure access and industry-leading convergence with the use of Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

Key Benefits of Cisco IE-4000-8GS4G-E Switch

Cisco IE-4000-8GS4G-E Switch is perfect for industrial Ethernet applications where hardened products are required. Those application requirements could include factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. Cisco IE 4000-8GS4G-E Switch complements the current industrial Ethernet portfolio of related Cisco industrial switches. Those range from Cisco IE 2000 to IE 3000. Users can easily install this Cisco IE 4000 switch in their network.



Total Ports 12
GE combo uplinks (4G) 4 GE combo uplink ports
SFP fiber ports (S) 8 GE
Default software LAN Base feature set
Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight 6.35 pounds (2.88 kg)
Total Ports 12
GE combo uplinks (4G) 4 GE combo uplink ports
(Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
SFP fiber ports (S) 8 GE
Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
Hardware   1GB DRAM

  128-MB onboard flash memory

  1-GB removable SD flash memory card

  Mini-USB connector

  RJ-45 connector

Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

  Maximum DC input current: 5A

Power consumption 42W
Forwarding rate Line-rate for all ports and all packet sizes
Number of queues 4 egress
Unicast MAC addresses 16,000
IGMP multicast groups 1,000
Number of VLANs 1,000
IPv4 MAC security ACEs 1,000 with default TCAM Template
NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
