Features
Content
IE-4000-4GC4GP4G-E-NEW
Details
  • Switch
  • Managed
  • 8 x combo Gigabit SFP + 4 x 10/100/1000 (PoE+)
  • DIN Rail Mountable
  • PoE+
  • DC power
Category
Stock

Additional information

Brand

Cisco

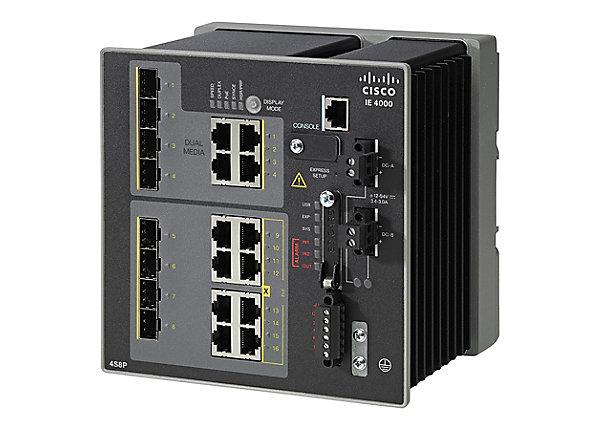

USE CISCO IE-4000-4GC4GP4G-E SWITCH FOR HIGH-BANDWIDTH SWITCHING

CISCO IE-4000-4GC4GP4G-E SWITCH provides superior high-bandwidth switching solution. It comes with proven CISCO IOS software-based routing capabilities for industrial environments. It delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP).

Key Benefits of CISCO IE-4000-4GC4GP4G-E SWITCH

CISCO IE-4000-4GC4GP4G-E SWITCH is for use in any rugged environment. It is best-suited for factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. Get an improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware performance.

Cisco IE-4000-4GC4GP4G-E Switch Overview



Total Ports 12
GE combo uplinks (4G) 4 GE combo uplink ports
Additional combo ports  4 GE
PoE/PoE+ ports (P, GP), Maximum PoE power budget 4 GE, 125W
Default software LAN Base feature set
Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight 6.35 pounds (2.88 kg)
Total Ports 12
GE combo uplinks (4G) 4 GE combo uplink ports

(Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)

Additional combo ports 4 GE
PoE/PoE+ ports (P, GP), Maximum PoE power budget 4 GE, 125W
Hardware   1GB DRAM

  128-MB onboard flash memory

  1-GB removable SD flash memory card

  Mini-USB connector

  RJ-45 connector

Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

  Maximum DC input current: 4.3A

Power consumption 40W
Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight 6.35 pounds (2.88 kg)
Forwarding rate Line rate for all ports and all packet sizes
Number of queues 4 egress
Unicast MAC addresses 16,000
IGMP multicast groups 1,000
Number of VLANs 1,000
IPv4 MAC security ACEs 1,000 with default TCAM Template
NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
