Features
Content
IE-4000-16GT4G-E-NEW
Details
  • Switch
  • Managed
  • 16 x 10/100/1000 + 4 x combo Gigabit SFP
  • DIN Rail Mountable
  • DC power
Category
Stock

Additional information

Brand

Cisco

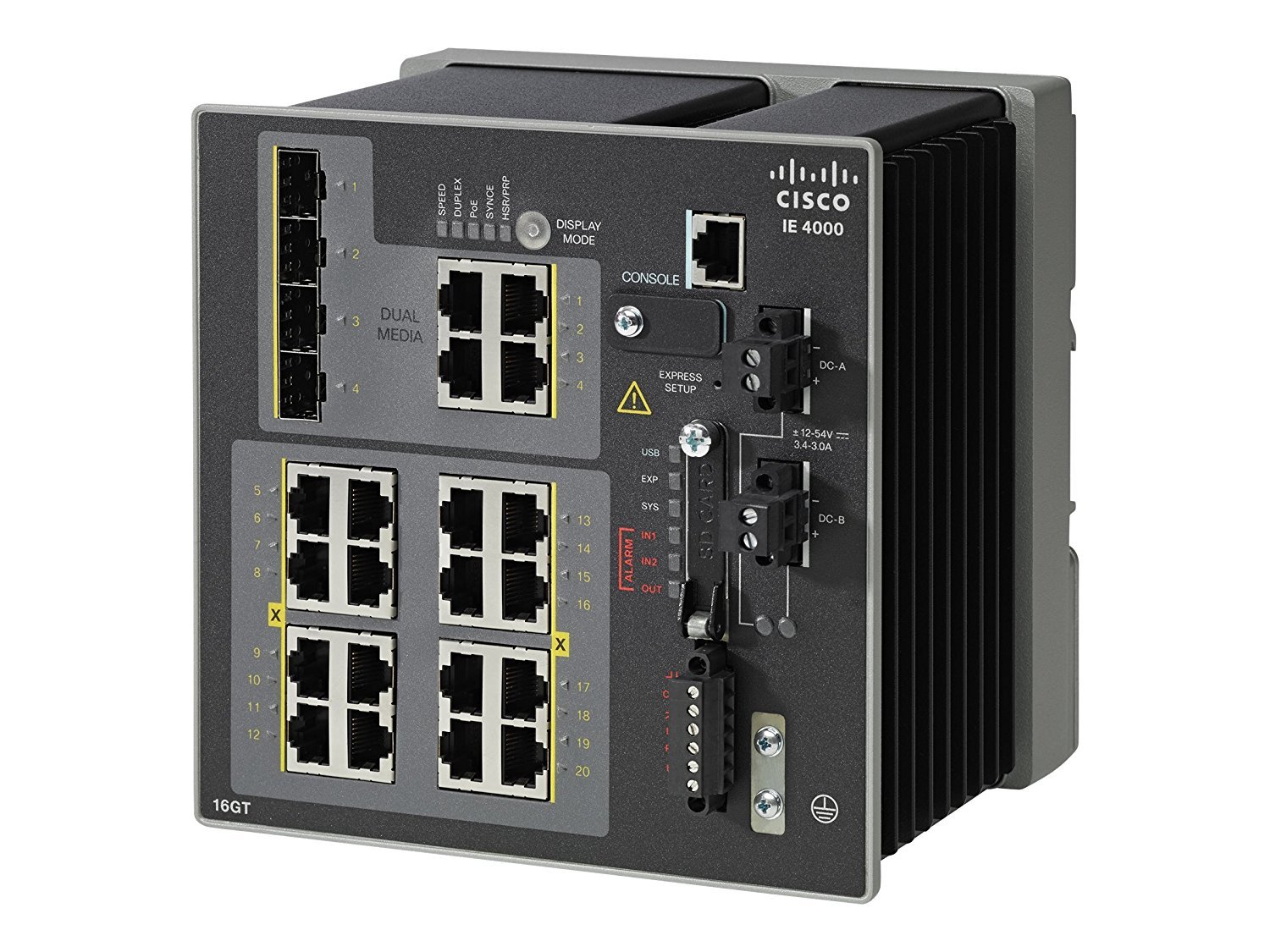

Cisco IE-4000-16GT4G-E Switch Overview



The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



Total Ports 20
GE combo uplinks (4G) 4 GE combo uplink ports
RJ-45 copper ports (T) 16 GE
Default software LAN Base feature set
Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight 6.35 pounds (2.88 kg)
Hardware   1GB DRAM

  128-MB onboard flash memory

  1-GB removable SD flash memory card

  Mini-USB connector

  RJ-45 connector

Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

  Maximum DC input current: 4.3A

Power consumption 40W
Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Forwarding rate Line-rate for all ports and all packet sizes
Number of queues 4 egress
Unicast MAC addresses 16,000
IGMP multicast groups 1,000
Number of VLANs 1,000
IPv4 MAC security ACEs 1,000 with default TCAM Template
NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
