Features
Content
CP-8832-K9-NEW
Details
  • Conference VoIP phone
  • SIP
  • SRTP
  • Power Adapter Sold Separately
Category
Stock

Additional information

Brand

Cisco

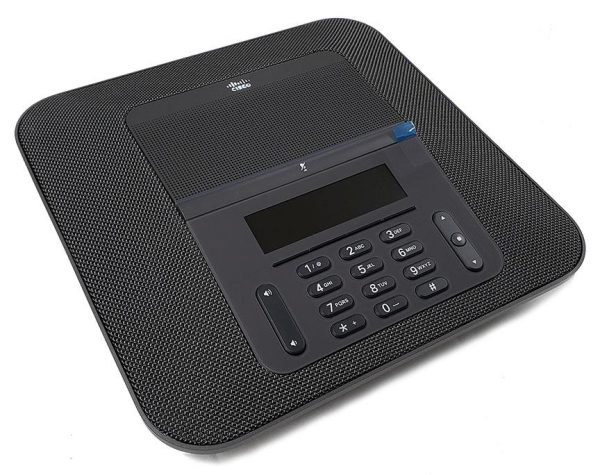

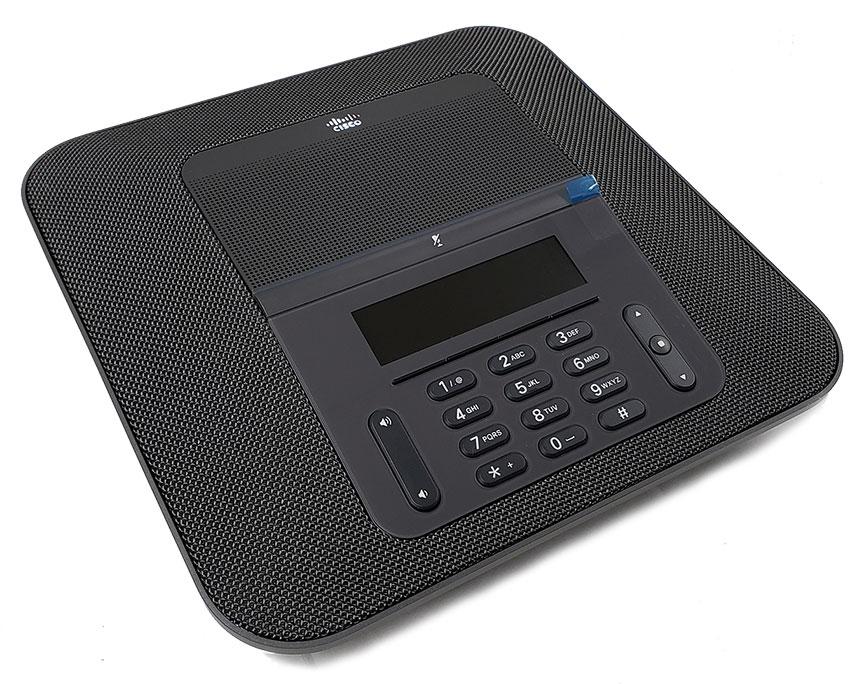

The Cisco IP Conference Phone 8832 makes communications easy, reliable, and highly secure. It helps you collaborate with colleagues, suppliers, and customers to advance your business goals.

The 8832 delivers high-quality, full-duplex, wideband VoIP communications. Its 360-degree coverage addresses the needs of medium to large conference rooms up to 800 square feet. It also serves private office desks, such as those for executives.



Cisco CP-8832-K9 IP Phone Overview



Graphical display 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
Ethernet switch 10/100 BASE-T via an Ethernet injector
Keys The phone has the following keys:

  Four context-sensitive soft key bars

  Two-way navigation bar and select button

  Standard keypad

  Volume-control bar

  Large mute key for ease of access
IEEE PoE IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet(LLDP-PoE)
Call control support Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5
Graphical display 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
Physical dimensions (H x W x D) 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
Weight 4.07 lb (1.85 kg)
Graphical display 480×128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
Ethernet switch 10/100 BASE-T via an Ethernet injector
Keys The phone has the following keys:

 Four context-sensitive soft key bars

 Two-way navigation bar and select button

 Standard keypad

 Volume-control bar

 Large mute key for ease of access

IEEE PoE IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol – Power over Ethernet(LLDP-PoE)
Call control support Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5
Graphical display 480×128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
Physical dimensions (H x W x D) 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
Weight 4.07 lb (1.85 kg)
Feature Specifications
Audio codec support G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS
Acoustics Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, 3 dB
Max adjustable volume: 89 dB within 0.5 m
Call features  + Dialing

 Adjustable ring tones and volume levels

 Barge

 Call forward

 Call history lists

 Call timer

 Call waiting

 Caller ID

 Corporate directory

 Conference

 Hold

 Music on Hold (MoH)

 Mute

 Predialing before sending

 Redial

 Shared line

 Speed dial (Favorites)

 Time and date display

 Transfer

 Voicemail (messages)

Quality-of-Service (QoS) options The phone supports Cisco Discovery Protocol and 802.1Q/p standards and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID.
Network features  Session Initiation Protocol (SIP) for signaling

 Session Description Protocol (SDP)

 IPv4

 IPv6

 User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams)

 Dynamic Host Configuration Protocol (DHCP) client or static configuration

 Gratuitous Address Resolution Protocol (GARP)

 Domain Name System (DNS)

 Trivial File Transfer Protocol (TFTP)

 Secure HTTP (HTTPS)

 VLAN

 Real-Time Transport Protocol (RTP)

 Real-Time Control Protocol (RTCP)

 Cisco Discovery Protocol

 LLDP (including LLDP-MED)

 Switch speed auto-negotiation

Security features  Secure credential storage

 Image authentication

 Random bit generation

 Manufacturer-Installed Certificates (MICs)

 Secure boot

 SHA-256 enabled for advanced security features

 Ethernet 802.1X supplicant options: Extensible Authentication Protocol – Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS)

 Signaling authentication and encryption using TLS v1.2

 Media authentication and encryption using SRTP

 HTTPS for client and server

 Secure Shell (SSH) Protocol server

Physical dimensions
(H x W x D)
10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
Weight 4.07 lb (1.85 kg)
Phone-casing composition Acrylonitrile Butadiene Styrene (ABS) textured plastic; Cisco cosmetic class A
Operational temperature 32 to 104F (0 to 40C)
Nonoperational temperature shock 14 to 140F (-10 to 60C)
Humidity  Operating 10% to 90%, noncondensing

 Nonoperating 10% to 95%, noncondensing

Language support The 8832 conference phone supports multiple languages..

The following is a list of countries supported in User Locale:

 Arabic (Arabic Area)

 Bulgarian (Bulgaria)

 Catalan (Spain)

 Chinese (China)

 Chinese (Hong Kong)

 Chinese (Taiwan)

 Croatian (Croatia)

 Czech (Czech Republic)

 Danish (Denmark)

 Dutch (Netherlands)

 English (United Kingdom)

 Estonian (Estonia)

 French (Canada)

 French (France)

 Finnish (Finland)

 German (Germany)

 Greek (Greece)

 Hebrew (Israel)

 Hungarian (Hungary)

 Italian (Italy)

 Japanese (Japan)

 Korean (Korea Republic)

 Latvian (Latvia)

 Lithuanian (Lithuania)

 Norwegian (Norway)

 Polish (Poland)

 Portuguese (Portugal)

 Portuguese (Brazil)

 Romanian (Romania)

 Russian (Russian Federation)

 Serbian (Republic of Serbia)

 Serbian (Republic of Montenegro)

 Slovak (Slovakia)

 Slovenian (Slovenia)

 Spanish (Columbia)

 Spanish (Spain)

 Slovak (Slovakia)

 Swedish (Sweden)

 Thai (Thailand)

 Turkish (Turkey)

 Ukrainian (Ukraine)

The following is a list of countries supported in Network Locale:

 Algeria

 Argentina

 Australia

 Austria

 Bahrain

 Belgium

 Brazil

 Bulgaria

 Canada

 Chile

 China

 Colombia

 Croatia

 Cyprus

 Czech Republic

 Denmark

 Egypt

 Estonia

 Finland

 France

 Germany

 Ghana

 Greece

 Hong Kong

 Hungary

 Iceland

 India

 Indonesia

 Iraq

 Ireland

 Israel

 Italy

 Japan

 Jordan

 Kenya

 Korea Republic

 Kuwait

 Latvia

 Lebanon

 Lithuania

 Luxembourg

 Malaysia

 Mauritania

 Mexico

 Morocco

 Nepal

 Netherlands

 New Zealand

 Nigeria

 Norway

 Oman

 Pakistan

 Panama

 Peru

 Philippines

 Poland

 Portugal

 Qatar

 Republic of Montenegro

 Republic of Serbia

 Romania

 Russian Federation

 Saudi Arabia

 Singapore

 Slovakia

 Slovenia

 South Africa

 Spain

 Sudan

 Sweden

 Switzerland

 Taiwan

 Thailand

 Tunisia

 Turkey

 United Arab Emirates

 United Kingdom

 Ukraine

 Venezuela

 Vietnam

 Yemen

 Zimbabwe


Certifications and compliance  Regulatory compliance

   CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU

 Safety

   UL 60950 Second Edition

   CAN/CSA-C22.2 No. 60950 Second Edition

   EN 60950 Second Edition (including A11 and A12)

   IEC 60950 Second Edition (including A11 and A12)

   EN 60950-1

   IEC 60950-1

   AS/NZS 60950.1

 EMC – Emissions

   47CFR Part 15 (CFR 47) Class B

   AS/NZS CISPR32 Class B

   CISPR32 Class B

   EN55032  Class B

   EN 300 386

   ICES003 Class B

   VCCI Class B

   EN61000-3-2

   EN61000-3-3

   EN61000-4-2

   IEC61000-4-2

   EN61000-4-3

   IEC61000-4-3

   EN61000-4-6

   IEC61000-4-6

   KN22 Class B

 EMC – Immunity

   EN55024

   CISPR24

   KN24

   Armadillo Light

 Telecom

   AS/ACIF S004

   NZPTC220

   Industry standards: TIA 810 and TIA 920

   Industry standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at

 Radio

   FCC Part 2.1093 (BT RF Exposure TR)

   RSS-102 (BT RF Exposure TR)

   RSS-210

   RSS-213

   RSS-247

   EN 300 328

   EN 300 440

   EN 301 406

   EN 50385 (BT RF Exposure TR)

   EN 301-489-1

   EN 301-489-3

   EN 301-489-6

   EN 301-489-17

   EN 301 893

   NCC LP0002

 Acoustics

   TIA810B

   TIA920A
