C9500-24Y4C-A-NEW
Details
  • L3, High-performance 24-port 1/10/25G switch
Category
Stock

Additional information

Brand

Cisco

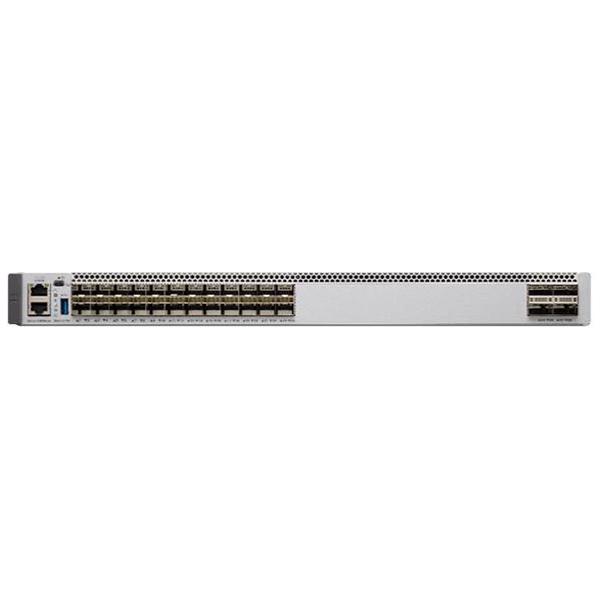

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Switching capacity Up to 1.6 Tbps
Forwarding rate Up to 1 Bpps
Total number of MAC addresses Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct
Up to 90,000 host/ARP
Total number of IPv6 routes Up to 212,000 indirect + direct
Up to 90,000 host/ARP
QoS ACL scale Up to 16000
Security ACL scale Up to 27000
FNF entries Up to 98,000
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9216 bytes
Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
Rack units (RU) 1 RU
Chassis with 2 power supplies and built-In fan 20.99 lb (9.52 kg)
Input voltage 90 to 264 VAC
Operating temperature 32 to 104F (0 to 40C)
Storage temperature -4 to 149F (-20 to 65C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude Operation up to 13,000 feet at 40C
MTBF (hours) 336,780
