C9500-24Q-E-NEW
Details
  • THIS ITEM IS A AND MAY TAKE ADDITIONAL SHIPPING TIME
  • Catalyst 9500 24-port 40G switch
Category
Stock

Additional information

Brand

Cisco

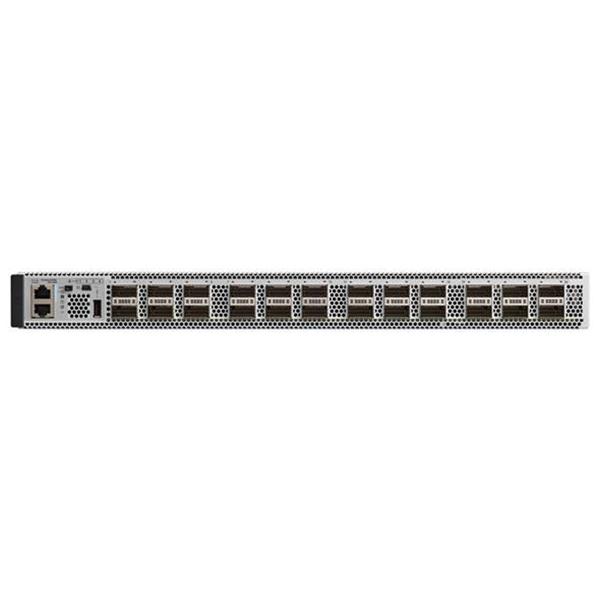

Cisco C9500-24Q-E Switch Overview



C9500-24Q-E is one of the Cisco Catalyst 9500 Series Switches. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.



Description Catalyst 9500 24-port 40G switch, Network Essentials
Switching capacity Up to 960 Gbps full duplex
Forwarding rate Up to 1440 Mpps
AC power max rating 950W
System power consumption 850W max
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Total number of MAC addresses Up to 64,000*
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect*

Up to 32,000 host*

Total number of IPv6 routes Up to 32,000 indirect*

Up to 16,000 host*

Multicast scale Up to 48,000*
QoS ACL scale Up to 18000*
Security ACL scale Up to 18000*
FNF entries Up to 512,000*
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9198 bytes
Power Supply Feature Support in the Catalyst 9500 Series
AC power max rating 950W
System power consumption 850W max
Input-voltage range and frequency AC 115 to 230 VAC, 50 to 60 Hz
Power supply efficiency 94%
Total output BTU (Note: 1000 BTU/hr = 293W) 2901 BTU/hr (850W) max
Input current AC 10A at 115VAC, 5 A at 230VAC
Output ratings 12V at 79A, 12V at 3A
Output holdup time AC = 10 ms at maximum load
Power-supply input receptacles AC IEC 60320 C16
Power cord rating AC 15A
Description Specifications
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Chassis with 2 power supplies and built-In fan 25.75 lb (11.68 kg)
Input voltage 90 to 264 VAC
Operating temperature 32F to 104F (0 to 40C)
Storage temperature -4 to 149F (-20 to 65C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude Operation up to 6000 ft
MTBF (hours) 127,660
