C9500-16X-A-NEW
Details
  • THIS ITEM IS A AND MAY TAKE ADDITIONAL SHIPPING TIME
  • L3
  • Managed
  • 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
  • Rack-mountable
Category
Stock

Additional information

Brand

Cisco

Â

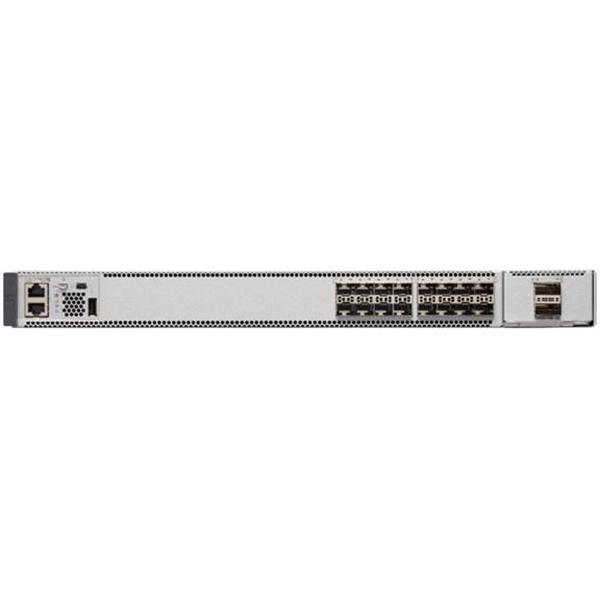

Cisco C9500-16X-A Switch Overview

 The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. Â
Description Catalyst 9500 16-port 10Gig switch, with Network Advantage
Switching capacity Up to 240 Gbps
Forwarding rate Up to 360 Mpps
DRAM 16 G
Flash 16 G
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Switching capacity Up to 240 Gbps
Forwarding rate Up to 360 Mpps
Total number of MAC addresses Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect
Up to 80,000 host
Total number of IPv6 routes Up to 32,000 indirect
Up to 40,000 host
QoS ACL scale Up to 18000
Security ACL scale Up to 18000
FNF entries Up to 512,000
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9198 bytes
Power Supply Selection PWR-C4-950WAC-R or PWR-C4-950WDC-R
Power max rating 950 W
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Chassis with 2 power supplies and built-In fan 23.6 lb (10.7 kg)
Input voltage 90 to 264 VAC
Operating temperature 32 to 104F (0 to 40C)
Storage temperature -4 to 149F (-20 to 65C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) Operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude Operation up to 6000 feet at 55C and 13,000 feet at 45C
MTBF (hours) 315,790
