Advanced persistent security threats, the exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.
The Cisco Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the network fabric that powers business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.
| Feature |

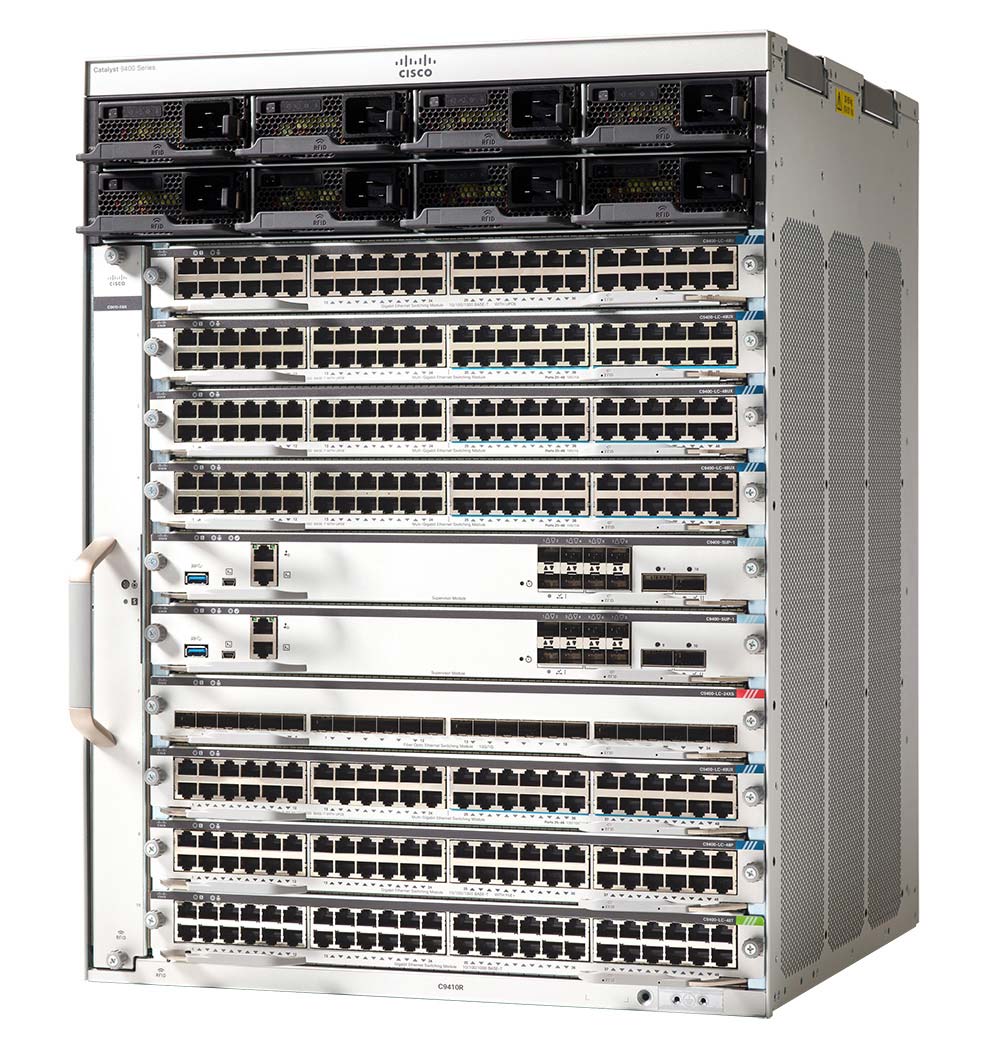

Cisco Catalyst C9410R |
| Total number of slots |
10 |
| Line-card slots |
8 |
| Supervisor engine slots |
2 |
| Dedicated supervisor engine slot numbers |
5 and 6 |
| Supervisor engine redundancy |
Yes |
| Supervisor engines supported |
C9400-SUP-1,
C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot |
2880W |
| Maximum Bandwidth scalability per line-card slot |
Up to 480 Gbps on all slots |
| Number of power supply bays |
8 |
| AC input power |
Yes |
| Integrated PoE |
Yes |
| Power supplies supported |
3200W AC, 2100W AC |
| Number of fan-tray bays |
1 |
| Location of 19-inch rack-mount |
Front |
| Dimensions (H x W x D) |
22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm) |
| Rack Units (RU) |
13 RU |
| Chassis weight (with fan tray) |
65.0 lb (29.48 kg) |
| Mounting |
19-in. rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance |
22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm) |
| Safety |
 UL 60950-1
 CAN/CSA-C222.2 No. 60950-1
 EN 60950-1
 IEC 60950-1
 AS/NZS 60950.1
 IEEE 802.3 |
| EMC |
 47 CFR Part 15
 CISPR22 Class A
 KN 32 Class A
 EN 300 386 V1.6.1
 EN 55022 Class A
 EN 55032 Class A
 CISPR 32 Class A
 EN61000-3-2
 EN61000-3-3
 ICES-003 Class A
 TCVN 7189 Class A
 V-3 Class A
 CNS13438 Class A
 CISPR24
 EN 300 386
 EN55024
 TCVN 7317
 KN35 |
| Industry EMC, safety, and environmental standards |
 NEBS: Operating temperature: -5 to 55C
 Relative Humidity: 10-93%
 Operating Altitude: up to 1829 m (6000 ft) at 55C
 ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.
 SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)
 ETS 300 019-2-1, Class 1.2 Storage
 ETS 300 019-2-2, Class 2.3 Transportation
 ETS 300 019-2-3, Class 3.2 Stationary
 EN50121-4
 EN 300 386        |
| ROHS compliance |
ROHS5 |
