| Features | |||
|---|---|---|---|
|
Content |
C9300-48UXM-E-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|

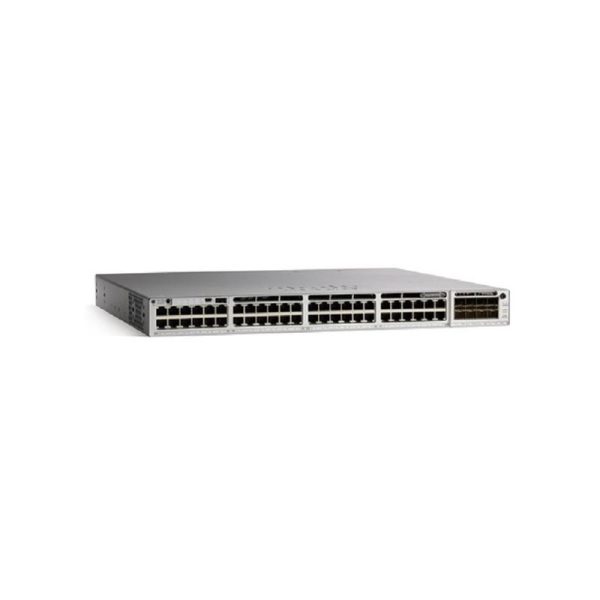

Cisco C9300-48UXM-E Switch provides 48-port 2.5G (12 mGig) UPoE, and Network essentials. Cisco C9300-48UXM-E Switch is industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. This switching platform built for security, IoT, mobility, and cloud.
Cisco C9300-48UXM-E Switch provides an optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. This switch is ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
 Â
| Total 10/100/1000 or Multigigabit copper ports | 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Default AC power supply | 1100W AC |
| Available PoE Power | 490W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Switching capacity | 580 Gbps |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| DRAM | 8 GB |
| Flash | 16 GB |
| Dimensions (H x W x D) Inches | Chassis only: 1.73 x 17.5 x 19.1 W/ Default Power Supply: 1.73 x 17.5 x 22.2 W/ 1100W Power Supply: 1.73 x 17.5 x 22.2 |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Ports | 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 490 W |
| Performance | Switching capacity: 580 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 431.54 Mpps |
| Capacity | IPv4 routing table entries: 32000Â IPv6 routing table entries: 16000Â Flexible NetFlow entries: 64000Â VLAN IDs: 4000Â Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Trunking, full-duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Interfaces | 36 x 2.5Gbit LAN RJ-45 UPOEÂ 12 x 1/2.5/5/10GBase-T UPOEÂ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| MTBF | 202,160 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Min Operating Temperature | 23 F |
| Max Operating Temperature | 113 F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | 158 F |
| Max Storage Temperature | 104 F |
| Humidity Range Storage | 5 – 90% (non-condensing) |
Â
