C9200L-48P-4G-E-NEW
Details
  • Switch
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • Rack-mountable
  • PoE+ (1440 W)
Category
Stock

Additional information

Brand

Cisco

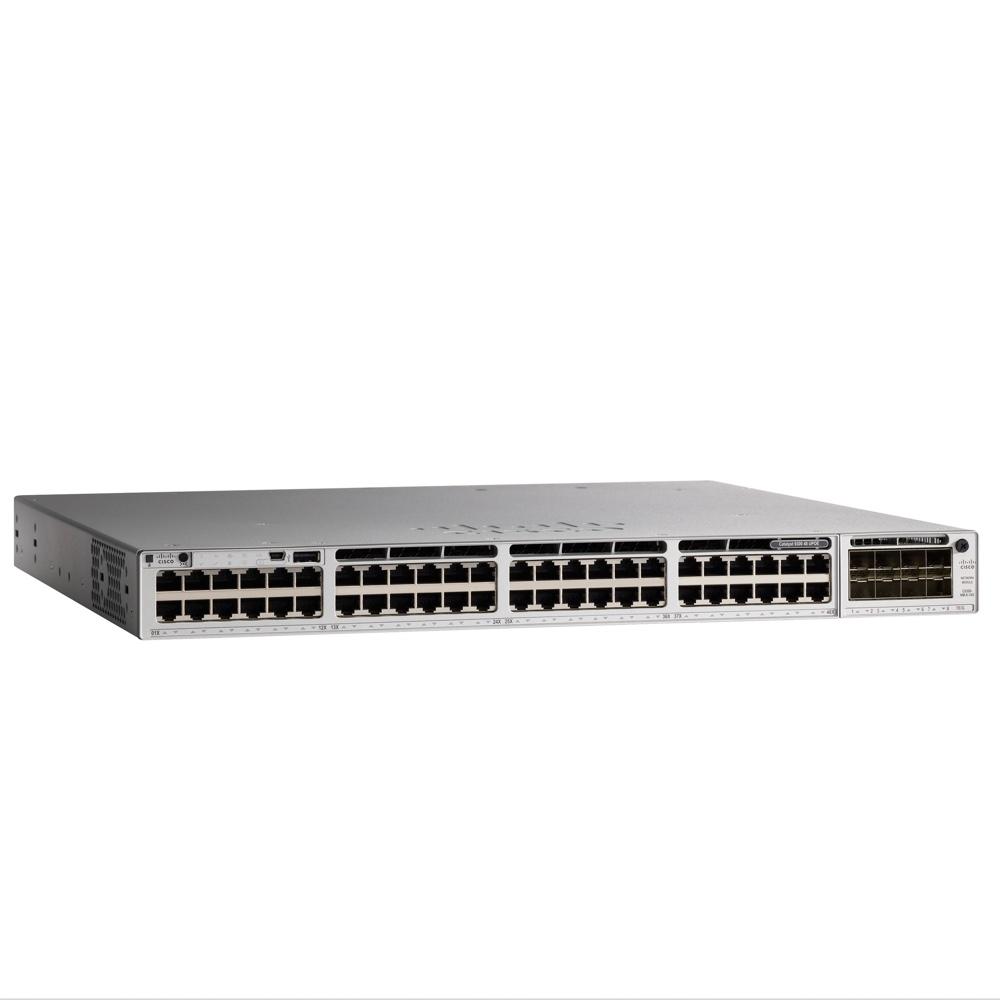

Install Cisco C9200L-48P-4G-E Switch for Enterprise-class Networking

Cisco C9200L-48P-4G-E Switch helps customers expand their enterprise networking demands as technologies and requirements change. It can also help organizations' IT staff stay in control of those needs, from managing updates and threats to keeping their network secure.

Key Benefits of Cisco C9200L-48P-4G-E Switch

Cisco C9200L-48P-4G-E Switch automates devices and applications without compromising security, detects threats hidden in encrypted network traffic, and quickly troubleshooting and converting data into business and IT insights. With this license, customers can segment their devices and application traffic without redesigning their network.



Downlinks total 10/100/1000 or PoE+ copper ports 48 ports full POE+
Uplink configuration 4x 1G fixed uplinks
Default primary AC power supply PWR-C5-1KWAC
Fans Fixed redundant
Software Network Essentials
Stacking bandwidth 80 Gbps
DRAM 2 GB
Flash 4 GB
Switching capacity 104 Gbps
Forwarding rate 154.76 Mpps
Chassis Dimensions 1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Weight 4.35 Kg
Virtual Networks 1
Stacking bandwidth 80 Gbps
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 2 GB
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 104 Gbps
Forwarding rate 154.76 Mpps
Meantime between failures (hours) 347,760
