C9200-48P-A-NEW
Details
  • Switch
  • L3
  • Smart
  • 48 x 10/100/1000 (PoE+)
  • Rack-mountable
  • PoE+
Category
Stock

Additional information

Brand

Cisco

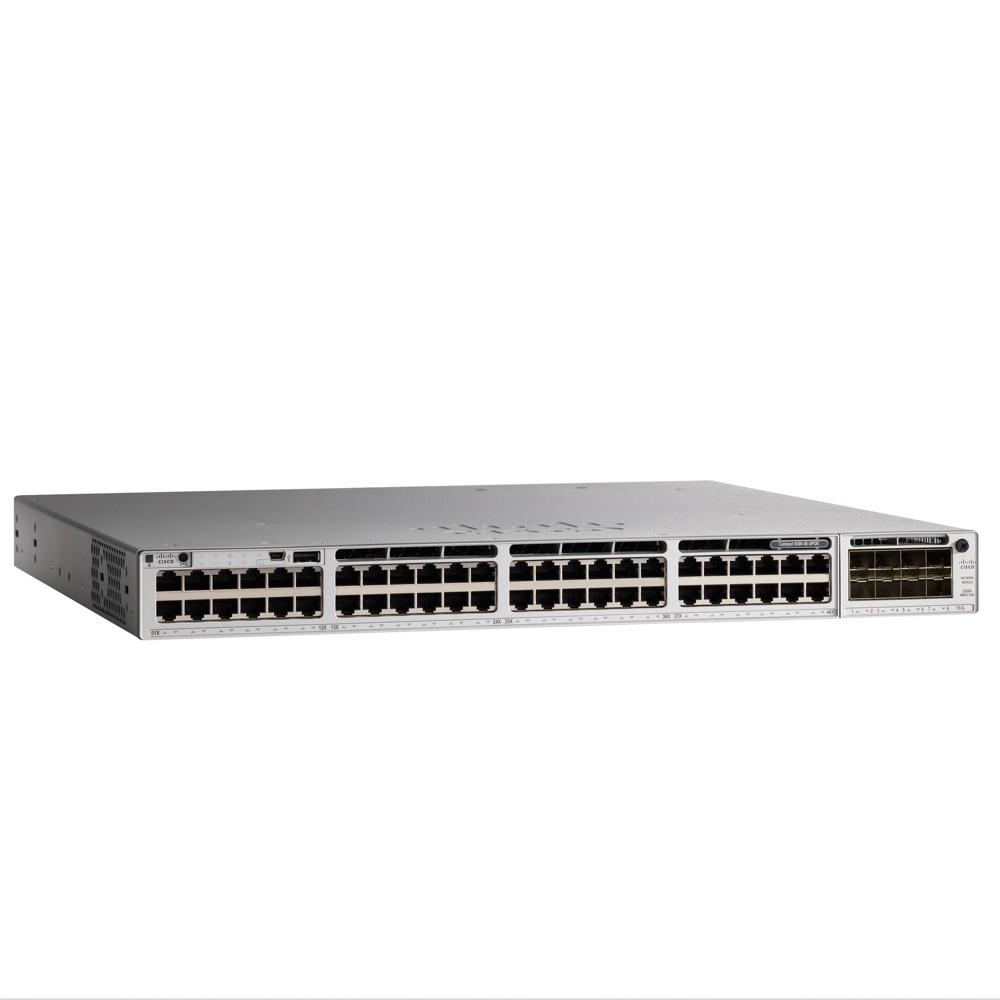

Use Cisco C9200-48P-A Switch for Applied Intelligence

Cisco C9200-48P-A Switch is designed to ensure security and compliance with real-time threat defense. With this licensing, users achieve SD-access and assurance and encrypted traffic analytics.

Key Benefits of Cisco C9200-48P-A Switch

Cisco C9200-48P-A Switch is designed to convert data to business and IT insights. It includes identity-based policy and segmentation, workflow-based automation, and analytics and insights



Downlinks total 10/100/1000 or PoE+ copper ports 48-port Full PoE+
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C5-1KWAC
Fans FRU redundant
Software Network Advantage
Stacking bandwidth 160 Gbps
DRAM 4 GB
Flash 4 GB
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Chassis Dimensions 1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm
Weight 5.5 Kg
Downlinks total 10/100/1000 or PoE+ copper ports 48 ports full PoE+
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C5-1KWAC
Fans FRU redundant
Software Network Advantage
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Weight 5.5 Kg
Virtual Networks 4
Stacking bandwidth 160 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries 4,000
IPv6 routing entries 2,000
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,600
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 4 GB
Flash 4 GB
VLAN IDs 4096
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Wireless bandwidth per switch Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Mean time between failures (hours) 375,570
