C9200-24T-A-NEW
Details
  • Switch
  • L3
  • Managed
  • 24 x 10/100/1000
  • Rack-mountable
Category
Stock

Additional information

Brand

Cisco

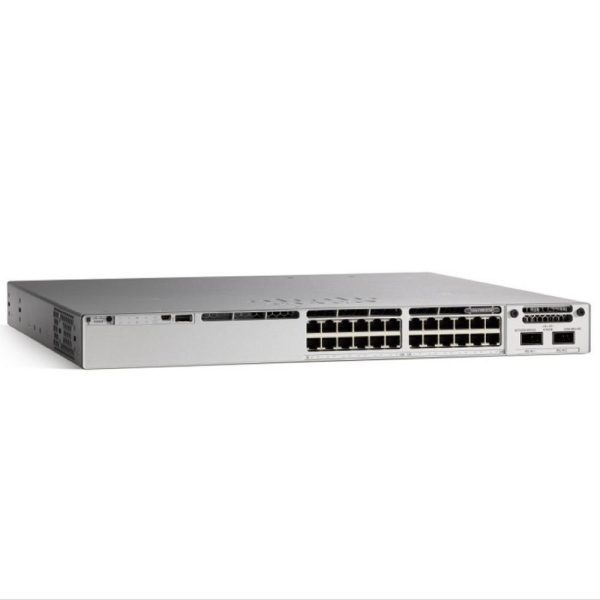

Cisco C9200-24T-A Switch for Simplified IT Functions

Cisco C9200-24T-A Switch is used for customers' team bridge for an intent-based network. Cisco provides a single network fabric that is powered by deep intelligence and integrated security to deliver automation and assurance across an entire network organization at scale.

Key Benefits of Cisco C9200-24T-A Switch

Cisco C9200-24T-A Switch ensures high security and always on, and IT simplicity, resulting in a great experience every time. It saves time, repetitive network configuration tasks, allowing you to focus on innovation that your business needs.



Downlinks total 10/100/1000 or PoE+ copper ports 24 ports data
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C5-125WAC
Fans FRU redundant
Software Network Advantage
Stacking bandwidth 160 Gbps
DRAM 4 GB
Flash 4 GB
Switching capacity 128 Gbps
Forwarding rate 190.4 Mpps
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm
Weight 5.0 Kg



Downlinks total 10/100/1000 or PoE+ copper ports 24 ports data
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C5-125WAC
Fans FRU redundant
Software Network Advantage
Chassis Dimensions 1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Weight 5.0 Kg
Virtual Networks 4
Stacking bandwidth 160 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries 4,000
IPv6 routing entries 2,000
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,600
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 4 GB
Flash 4 GB
VLAN IDs 4096
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Wireless bandwidth per switch Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity 128 Gbps
Forwarding rate 190.4 Mpps
Mean time between failures (hours) 587,800
