| Features | |||
|---|---|---|---|
|
Content |

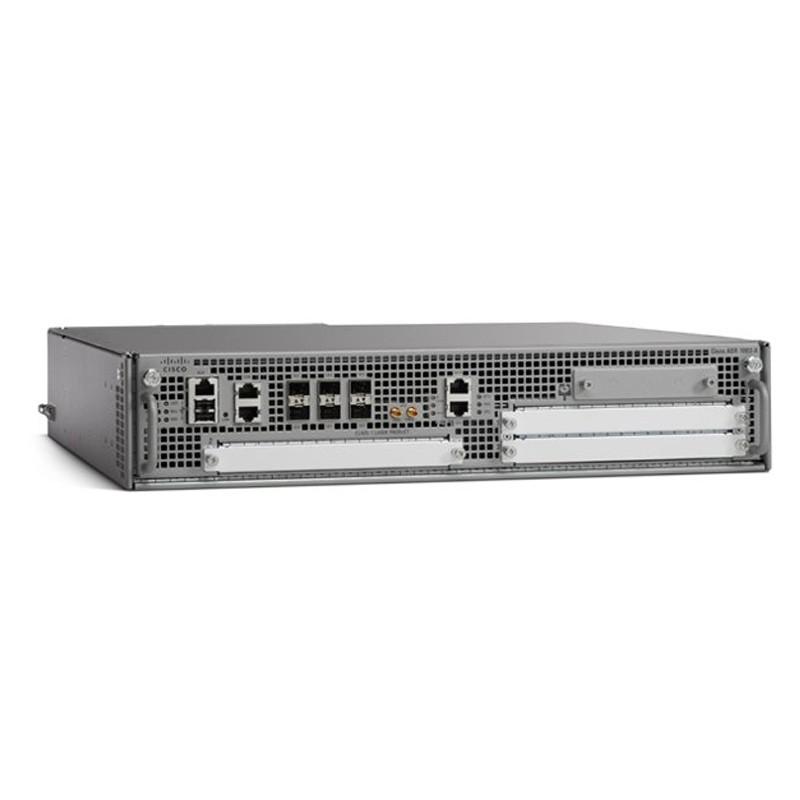

ASR1002X-5G-K9-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 3.5 in. (88.9 mm)
Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: Â Â 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers) Â Â 39.05 lb (17.72 kg) (with dual DC power supply and blank covers) Â Â No SPAs included Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated. |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | 3 SPA slots |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1002-X |
| ESP support | Cisco ASR 1002-X ESP with 5-Gbps (default)
Upgradable through software-activated feature license to 10, 20, or 36 Gbps |
| ESP bandwidth | 5 to 36 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis: not upgradable |
| Embedded hardware-based encryption | Yes: Up to 4-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.7.0S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Same as for Cisco ASR 1002 |
| Power input | Same as for Cisco ASR 1002 |
| Power consumption | Â Â Maximum (DC): 590W
  Maximum (AC): 560W   Maximum (out): 470W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104 F (0 to 40 C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150 F (-40 to 70 C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Same as for Cisco ASR 1001-X |
| Safety Standard | UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
