| Type |

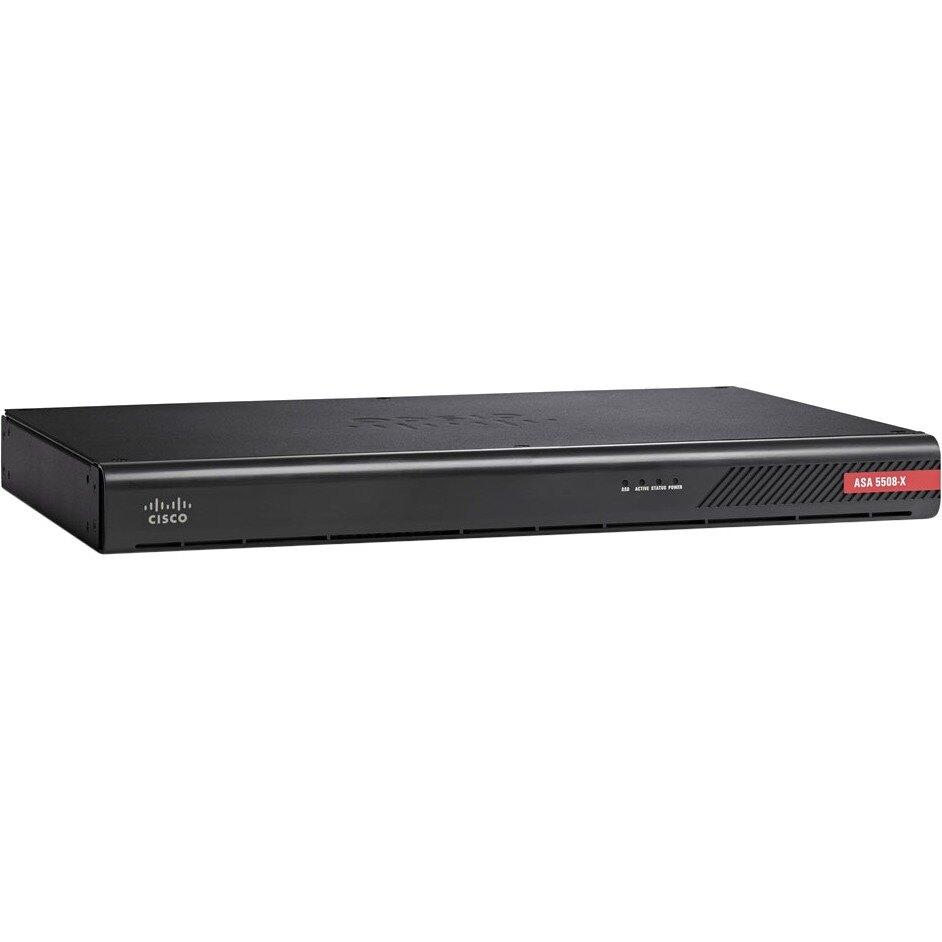

 Cisco ASA 5508-X with FirePOWER Services |
Throughput: Application Control (AVC)
|
450 Mbps |
| Throughput: Application Control (AVC) and IPS |
250 Mbps |
| Maximum Concurrent Session |
100,000 |
| Maximum New Connections per Second |
10,000 |
| Supported Applications |
More than 3,000
|
| URL Categories |
80+
|
| Number of URLs Categorized |
More than 280 Million
|
Centralized configuration, logging, monitoring,
and reporting
|
Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
|
| On-Device Management |
ASDM (version 7.3 or higher required)
|
| Feature |
Cisco ASA 5508-X with FirePOWER Services
|
| Stateful inspection throughput (maximum) |
1 Gbps
|
| Stateful inspection throughput (Multiprotocol) |
500 Mbps
|
Triple Data Encryption Standard/
Advanced Encryption Standard (3DES/AES) VPN
throughput3
|
175 Mbps
|
| Users/nodes |
Unlimited
|
| IPsec site-to-site VPN peers |
100
|
Cisco AnyConnect Plus/Apex VPN maximum
simultaneous connections5
|
100
|
| Virtual interfaces (VLANs) |
50
|
| Security contexts5 (included; maximum) |
2;5
|
| High Availablity |
Active/
Active and Active/
Standby
|
| Expansion Slot |
N/A
|
| USB 2.0 Ports |
USB port type ‘A’, High Speed 2.0
|
| Integrated I/O |
8 x1 GE
|
| Dedicated Management Port |
Yes (To be shared with FirePOWER Services), 10/100/1000
|
| Serial Ports |
1 RJ-45 and Mini USB console
|
| Solid-State Drive |
80 GB mSata
|
| Memory |
8 GB
|
| System Flash |
8 GB
|
| System Bus |
Multibus Architecture
|
| Relative Humidity |
10 to 90 percent noncondensing
|
| Operating Altitude |
Designed and tested for 0 to 10,000 ft (3048 m)
|
| Non-Operating Altitude |
Designed and tested for 0 to 15,000 ft (4572 m)
|
| Operating Temperature |
32 to 104F (0 to 40C)
|
| Non-Operating Temperature |
-13 to 158F (-25 to 70C)
|
| AC Range Line Voltage |
External, 90 to 240 volts alternating current (VAC)
|
| AC Normal Line Voltage |
91 to 240 VAC
|
| AC Current |
0.25AC amps
|
| AC Frequency |
50/60 Hz
|
| Dual-Power Supplies |
None
|
| Steady State |
12V @3.0A
|
| Maximum Peak |
12V @5A
|
| Maximum Heat Dissipation |
123 Btu/hr
|
| Form Factor |
1 rack unit (RU), 19-in. rack-mountable
|
| Dimensions (H x W x D) |
1.72 x 17.2 x 11.288 in. (4.369 x 43.688 x 28.672 cm)Â
|
| Weight (with AC Power Supply) |
8 lb (3 kg)
|
