AIR-AP3802E-B-K9-NEW
Details
  • Wireless access point
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band
  • External Antenna (Sold Separately)
Category
Stock

Additional information

Brand

Cisco

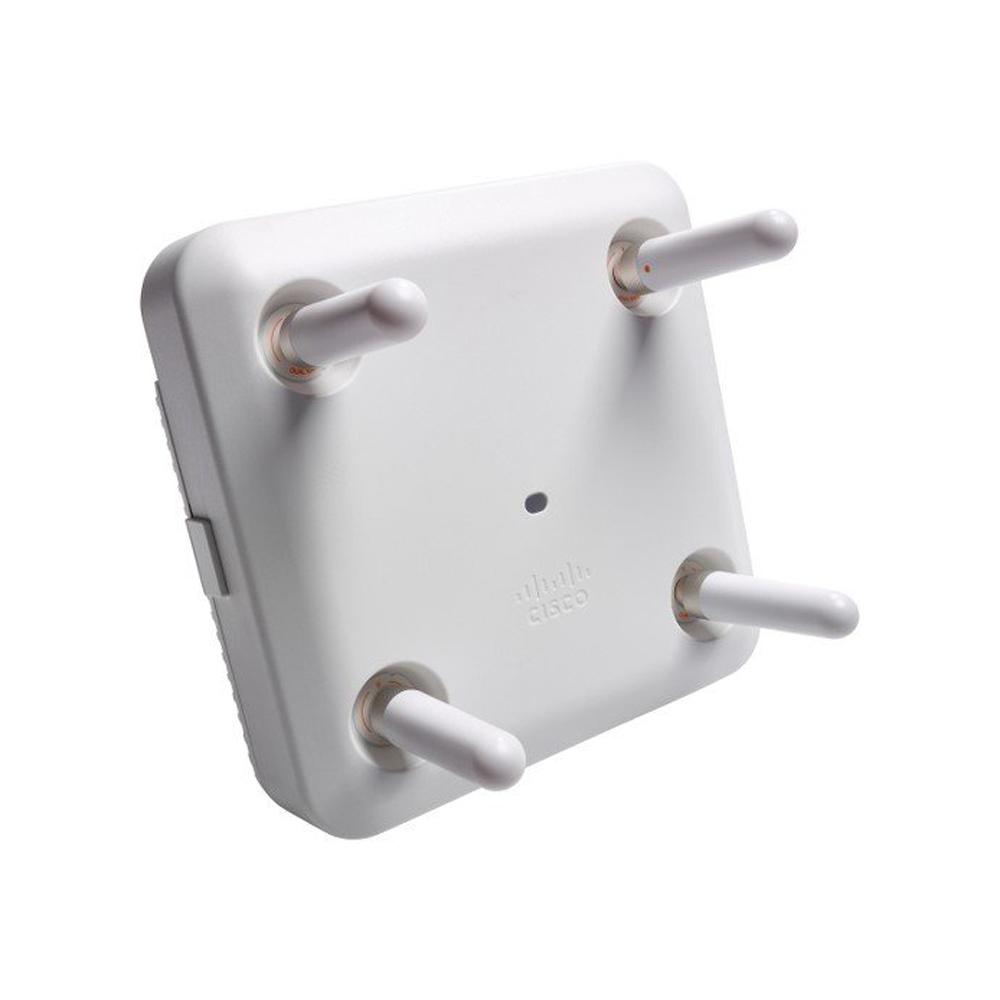

Efficient Wireless Cisco Air-Ap3802e-B-K9 Access Point

Cisco Air-Ap3802e-B-K9 Access Point is high-speed and dual-band networking equipment. With 802.11ac Wave 2 and 802.11a/b/g/n/ac Wave 2 LAN technology, this access point ensures efficient wireless connectivity.

Key Benefits of Cisco Air-Ap3802e-B-K9 Access Point

Cisco Air-Ap3802e-B-K9 Access Point provides a fast connection with a 5.2 GBPS data transfer rate. This dual-band access point has 4T4R MIMO technology, auto-sensing, Beamforming, CleanAir, ClientLink 4.0, cross AP noise reduction, optimized AP roaming capability and is, therefore, an ideal choice for demanding office environments.

Approved External Antennas For Use With 3802E

Cisco AIR-AP3802E-B-K9 Access Point Technical Specifications



External Antenna (sold separately)
  • 3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart Antenna Connector
  • Requires the AIR-CAB002-DART-R 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
  • Required when running the flexible radio as either a:

           – Second 5-GHz serving radio

           – Wireless Security Monitoring radio

Interfaces
  • 2 Ethernet Ports
  • 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

              – CAT 5e cabling

              – Higher-quality 10GBASE-T (CAT 6/6a) cabling

  • 100/1000BASE-T autosensing (RJ-45 – AUX port)
  • Management console port (RJ-45)
Indicators
  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)
  • Access point: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)  (without mounting brackets)
Weight
  • 4.6 lb (2.09 kg)
Input Power Requirements
  • 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE)
  • 802.3at power injector (AIR-PWRINJ6)
  • 50W power supply (AIR-PWR-50)
Power Draw
  • 25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port
  • 30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled
