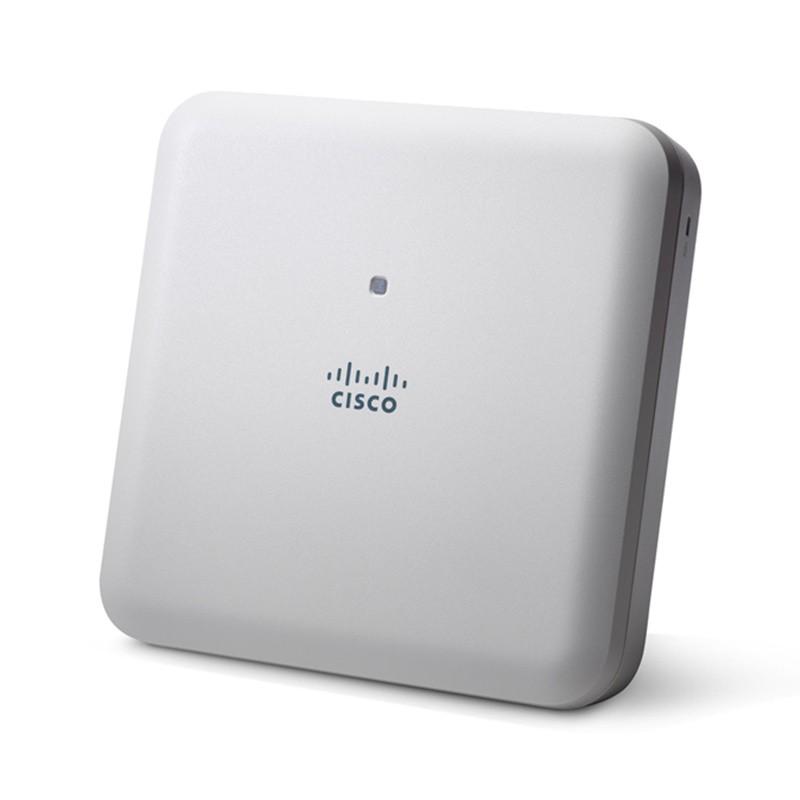

Cisco AIR-AP1832I-B-K9C Access Point

Ideal for small and medium-sized networks, the Cisco Aironet 1830 series delivers great wireless performance with support for the advanced Wi-Fi standard and meets the growing requirements of wireless networks by delivering better user experience. The 1830 series extends support to a generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support. With 802.11ac Wave 2, the 1830 series provides a high data rate, exceeding the data rates offered by high-end 802.11n Access Points. It also enables a total aggregate dual-radio data rate, providing the necessary foundation for enterprise and service provider networks to stay ahead of the performance and bandwidth expectations and needs of their wireless users. Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users' day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1830 series delivers amazing performance for highly secure and reliable wireless connections and provides a robust mobility experience.



Cisco AIR-AP1832I-B-K9C Access Point Overview



Description	802.11ac Wave 2 AP, 3x3:2, Internal Antenna, B Regulatory Domain   Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Features	- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 867 Mbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Regulatory Domain	B (B regulatory domain): - 2.412 to 2.462 GHz; 11 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.720 GHz; 12 channels - 5.745 to 5.825 GHz; 5 channels
Integrated antenna	- 2.4 GHz, gain 3 dBi, internal Omni, horizontal beamwidth 360 - 5 GHz, gain 5 dBi, internal Omni, horizontal beamwidth 360Â
Interfaces	- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - Management console port (RJ-45) - USB 2.0 (enabled via future software)
Dimensions (W x L x H)	8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)

Description	802.11ac Wave 2 AP, 3×3:2, Internal Antenna, B Regulatory Domain   Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Features	– 3×3 MIMO with two spatial streams, single-user or multiuser MIMO – MRC – 802.11ac beamforming (transmit beamforming) – 20-, 40-, and 80-MHz channels – PHY data rates up to 867 Mbps (80 MHz in 5 GHz) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support       Â
Regulatory Domain	B (B regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels
Integrated antenna	– 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360 – 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360Â
Interfaces	– 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) – Management console port (RJ-45) – USB 2.0 (enabled via future software)
Dimensions (W x L x H)	8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points
Deployment modes	Centralized, standalone, sniffer, Cisco FlexConnect, monitor, OfficeExtend, mesh
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex  7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controllerCisco Mobility Express
802.11n version 2.0 (and related) capabilities	3×3 MIMO with two spatial streamsMaximal ratios combining (MRC)20- and 40-MHz channels PHY data rates up to 300 Mbps (40 MHz with 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	3×3 MIMO with two spatial streams, single-user or multiuser MIMOMRC802.11ac beamforming (transmit beamforming)20-, 40-, and 80-MHz channels PHY data rates up to 867 Mbps (80 MHz in 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support
Regulatory Domain	B (B regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels
Integrated antenna	2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360Â
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)Management console port (RJ-45)USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Environmental	Cisco Aironet 1830i Nonoperating (storage) temperature: -22  to 158 F (-30  to 70 C)Nonoperating (storage) altitude test: 25 C, 15,000 ft.Operating temperature: 32  to 104 F (0  to 40 C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40 C, 9843 ft
System memory	1 GB DRAM256 MB flash
Input power requirements	AP1830: 44 to 57 VDC power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	15.4W Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	802.3af/802.3atEnhanced PoECisco local power supply, AIR-PWR-C=Cisco power injector, AIR-PWRINJ5= (Note: This injector supports 802.3af only), AIR-PWRINJ6= Note: If 802.3af PoE is the source of power, the USB port is disabled.
